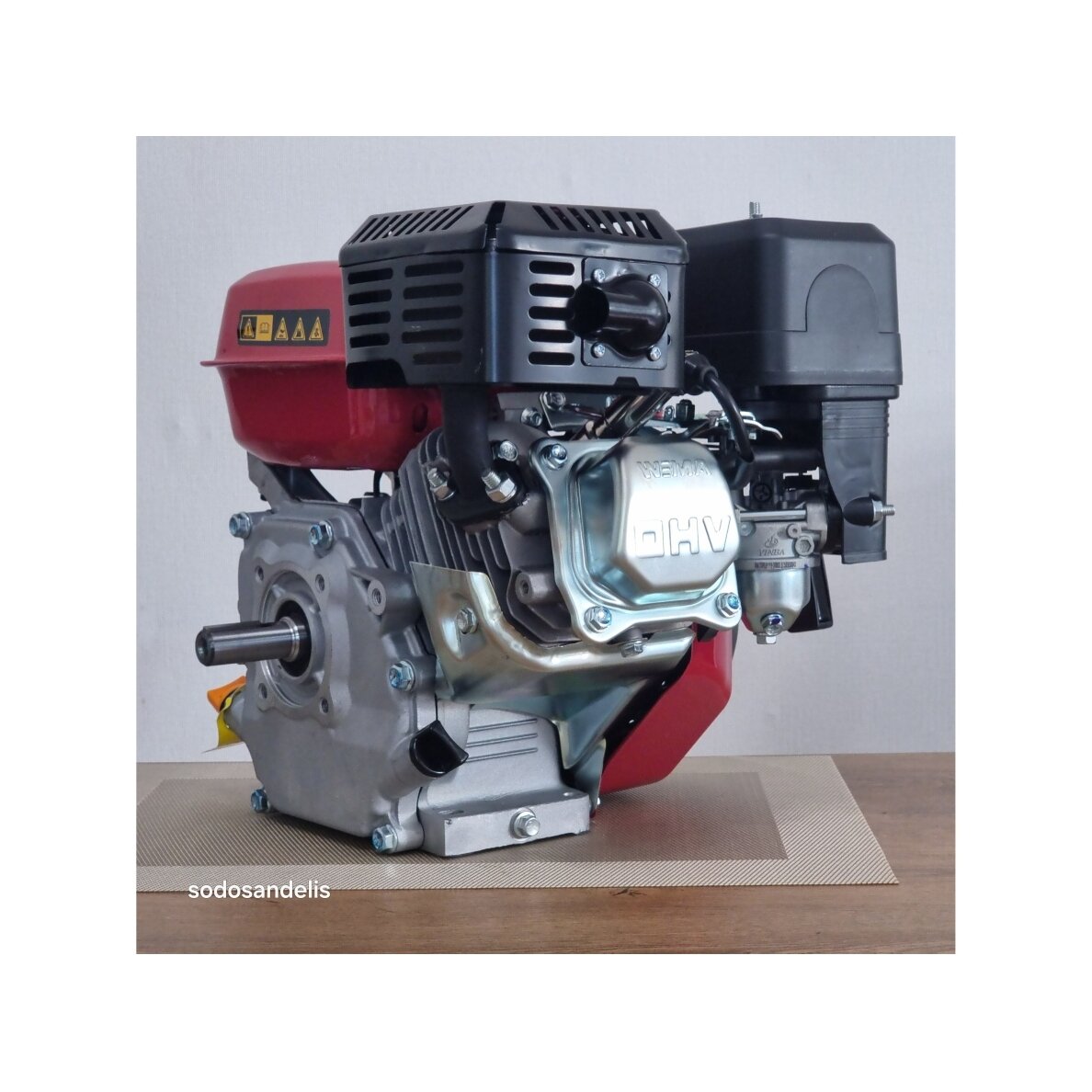

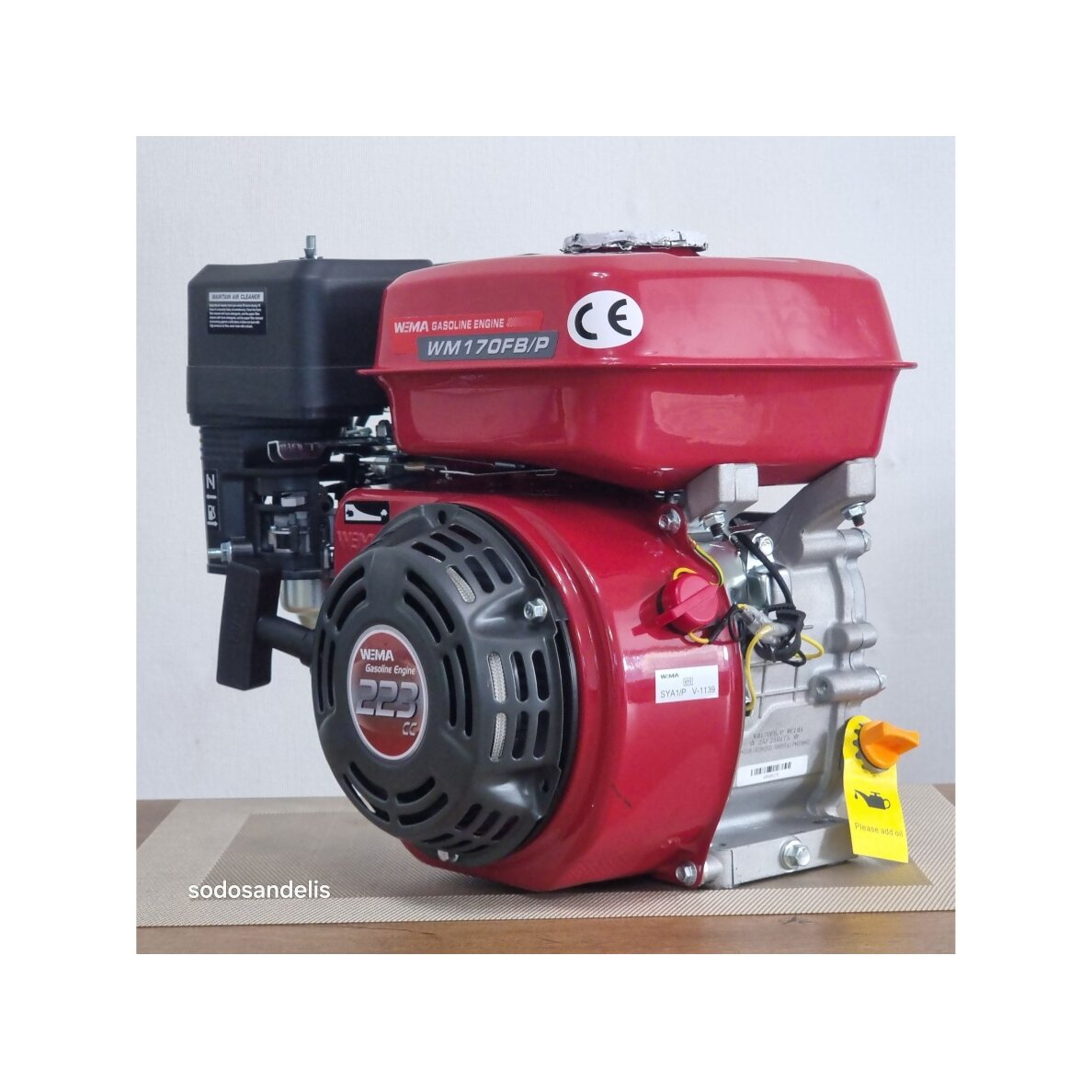

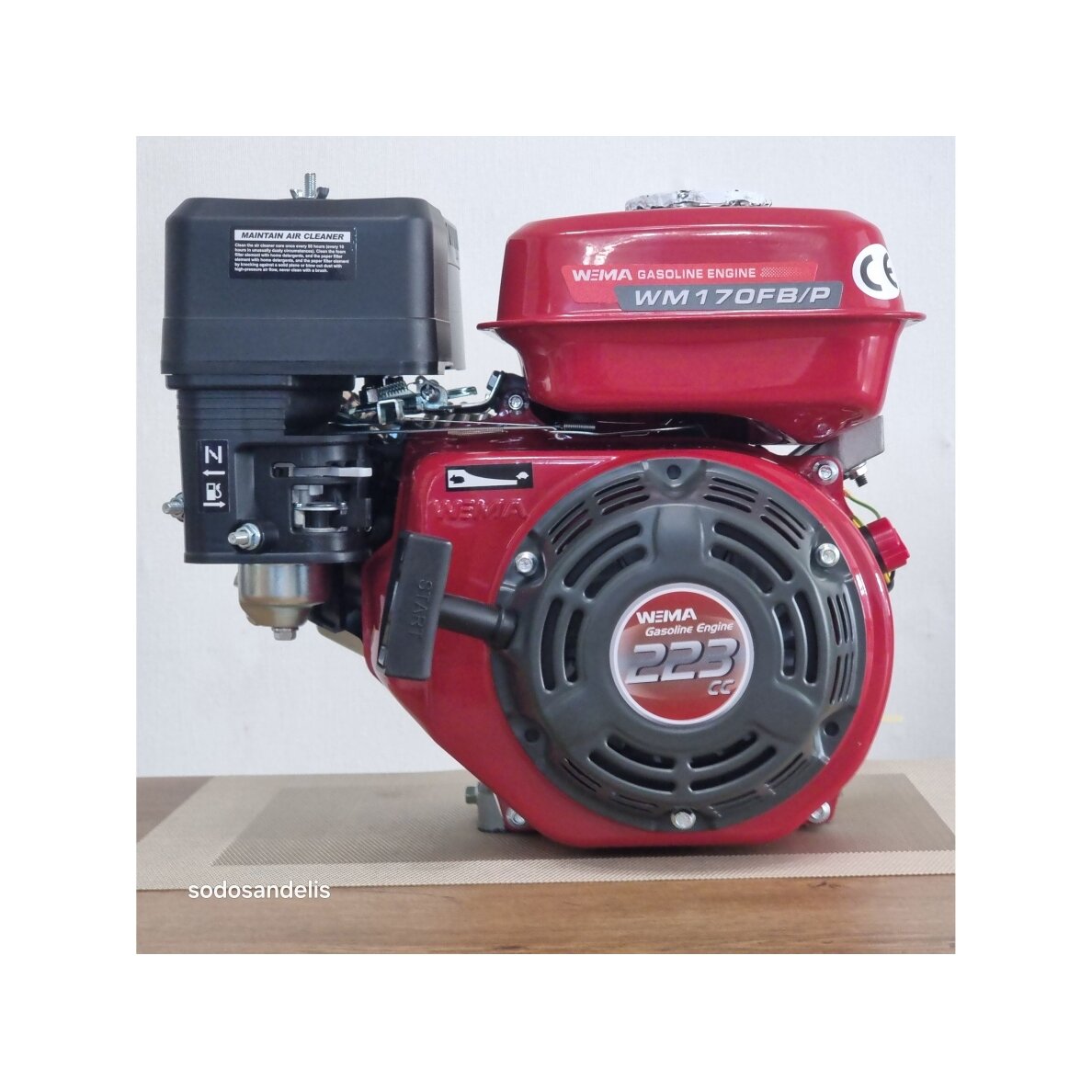

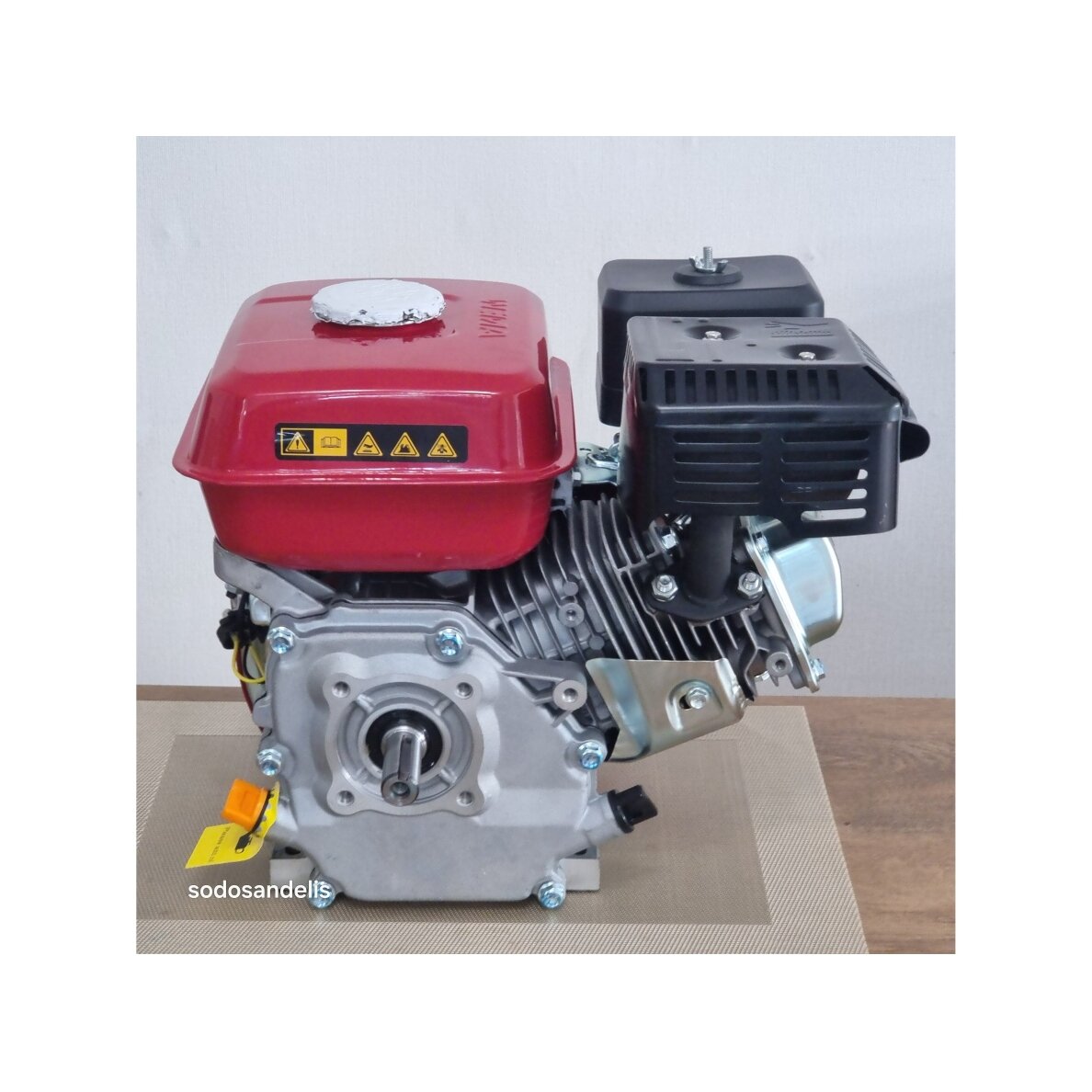

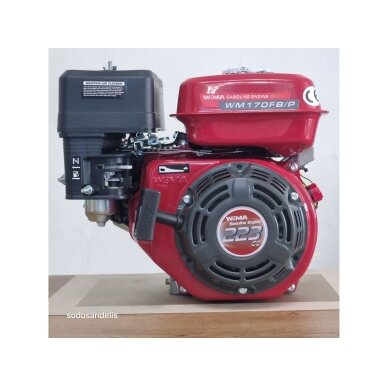

WM170FB\/P 19mm shaft

This gasoline engine with a 19mm shaft – „Weima WM170FB\/P“ horizontal shaft engine, designed for compatible garden, agricultural and construction machinery. 223 cm³ four-stroke OHV construction ensures good torque, easy maintenance and reliable operation of belt-, pulley- or coupling-driven equipment.

The engine develops 4,8kW maximum and 4,4kW nominal power at 3600 aps.\/min. It belongs to the 7,5AG engine class and has a compact mounting base.

Data for the gasoline engine with 19mm shaft
Manufacturer: „Weima“
Model: WM170FB\/P
Type: single-cylinder, four-stroke OHV
Cooling: forced air
Displacement: 223 cm³
Cylinder bore × piston stroke: 70 × 58mm
Maximum power: 4,8kW at 3600 aps.\/min.
Rated power: 4,4kW at 3600 aps.\/min.
Maximum torque: 13Nm at 2800 aps.\/min.
Starter: manual

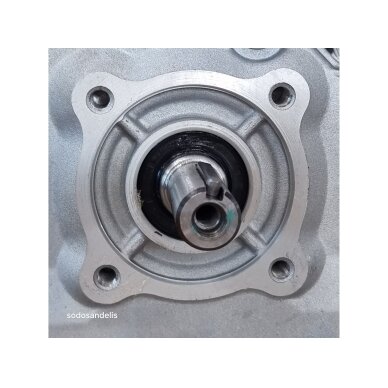

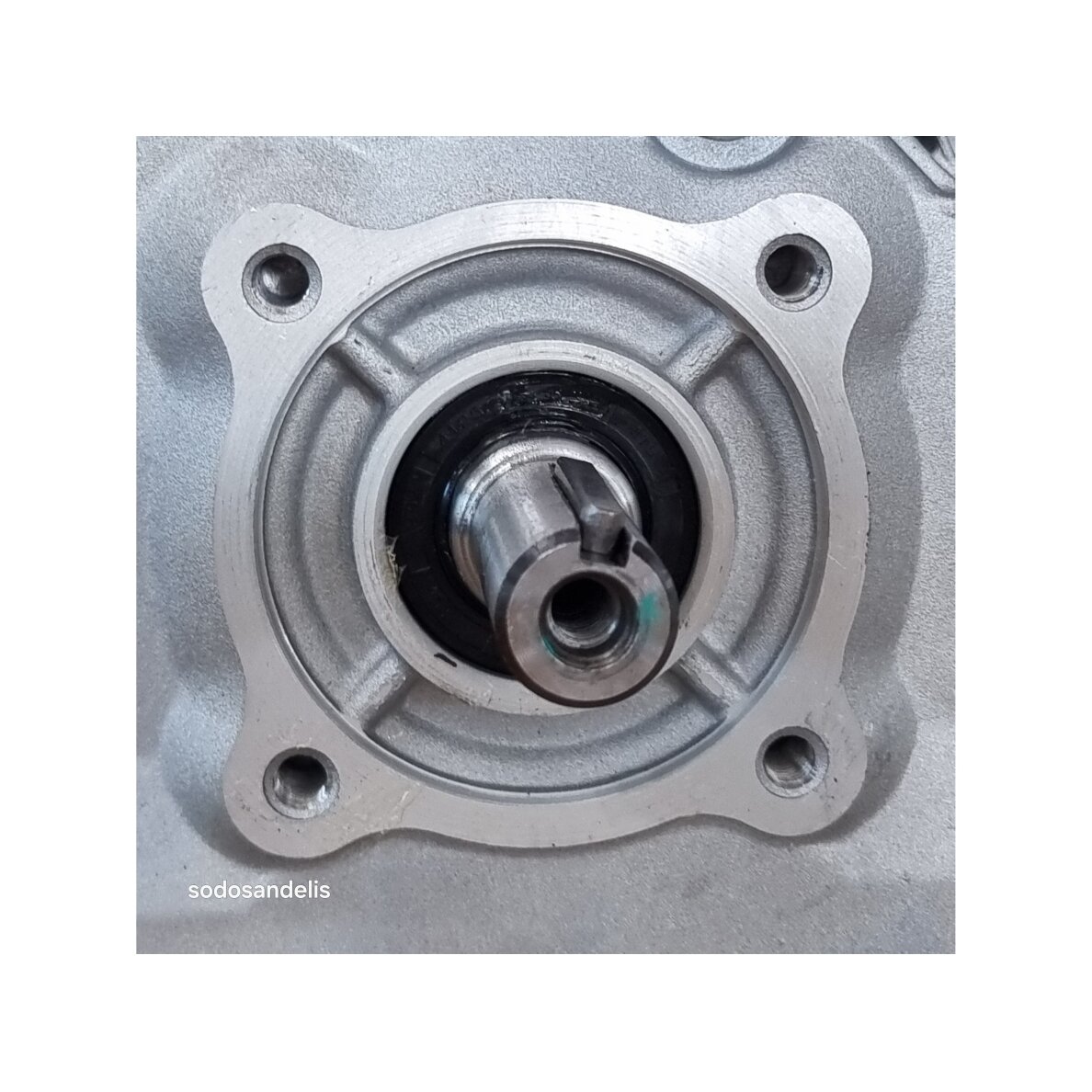

Output shaft: horizontal 19mm shaft with keyway for the pulley
Fuel tank capacity: 3,5 L
Oil capacity: 0,6 L
Dimensions: 340 × 310 × 330mm
Weight: 16,5kg
Suitable equipment

The engine is suitable for compatible:

Cultivators and tillers
Water pumps
Generators
High-pressure washers
Vibrating plates
Belt-driven agricultural machinery
Other equipment with a 19mm horizontal shaft

This model differs from the separate 20mm WM170FB\/P version by the shaft diameter. Before ordering, compare the shaft diameter, working length, keyway, central thread, shaft height and the arrangement of the mounting holes.

When mounting, precisely align the engine with the driven mechanism. Also, tension the belt properly to avoid overloading the crankshaft bearings.

Before the first start, add oil suitable for four-stroke engines. You can find more models in the gasoline engines category.
