WEIMA WM1000N-6 Power tiller - cultivator

Gasoline power tiller WEIMA WM1000N-6, 7 AG, 4+2 gears, KM handle

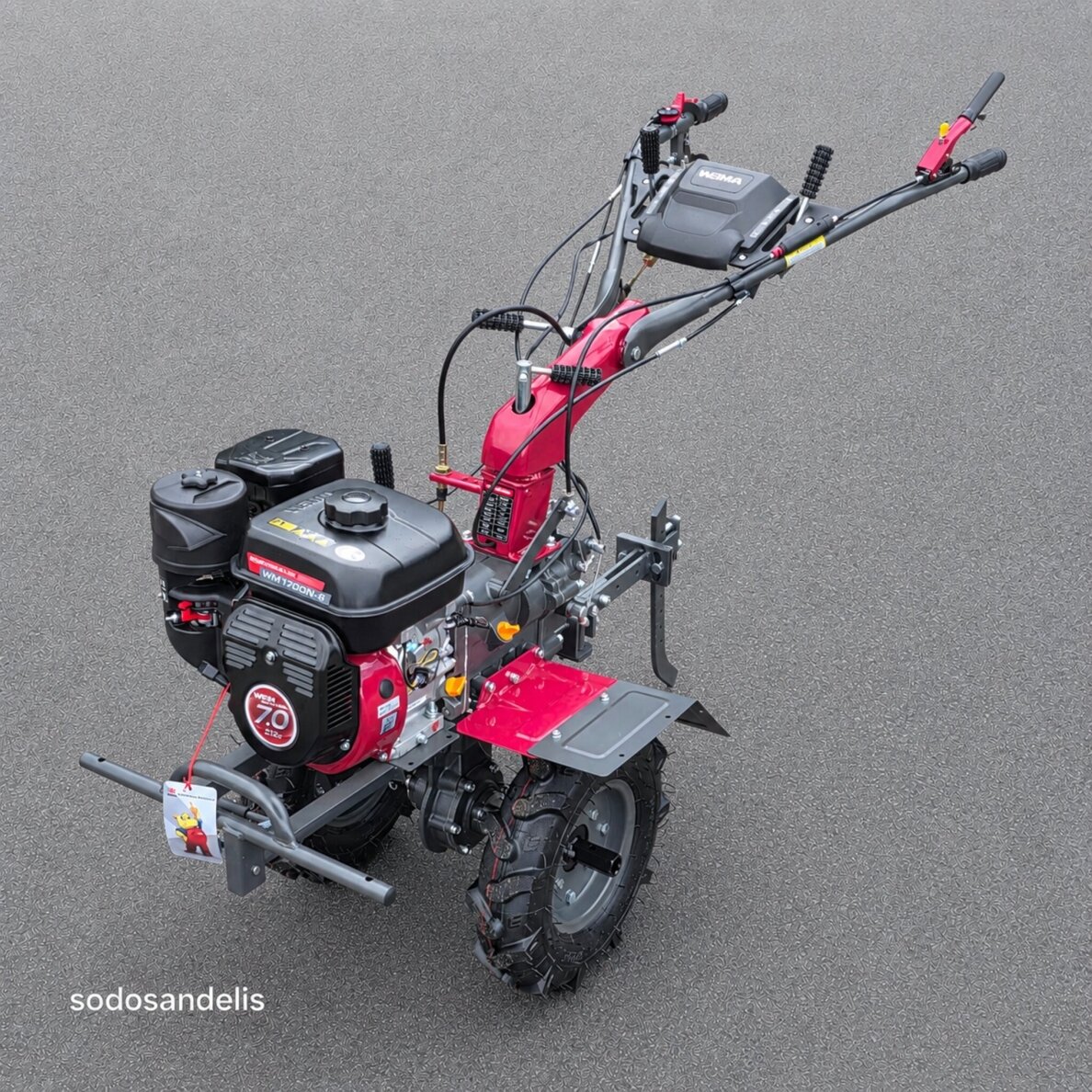

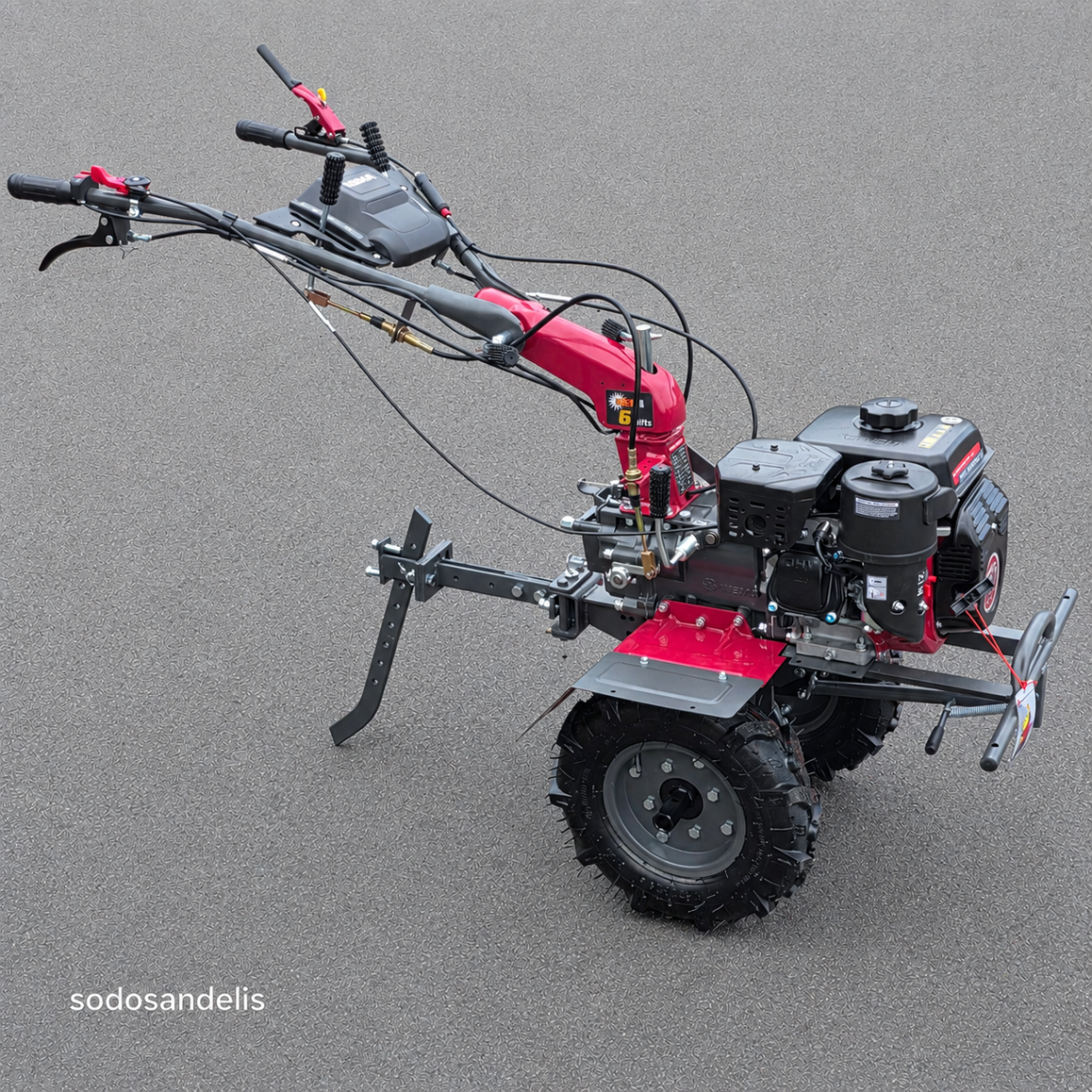

WEIMA WM1000N-6 – 110 kg weight gasoline power tiller designed for soil tilling and for work with trailed and active implements. Gear transmission, four forward and two reverse gears allow selecting the appropriate speed according to the soil and the job to be performed.

The power tiller is equipped with **212 cm³ four-stroke WEIMA WM170F-2 OHV engine**. Maximum declared power – 7 AG, rated power – 4,0 kW esant 3600 aps./min. The engine is started with a manual starter, air-cooled. Fuel and engine oil are filled separately – no need to prepare a fuel mixture.

Adjustable tilling width

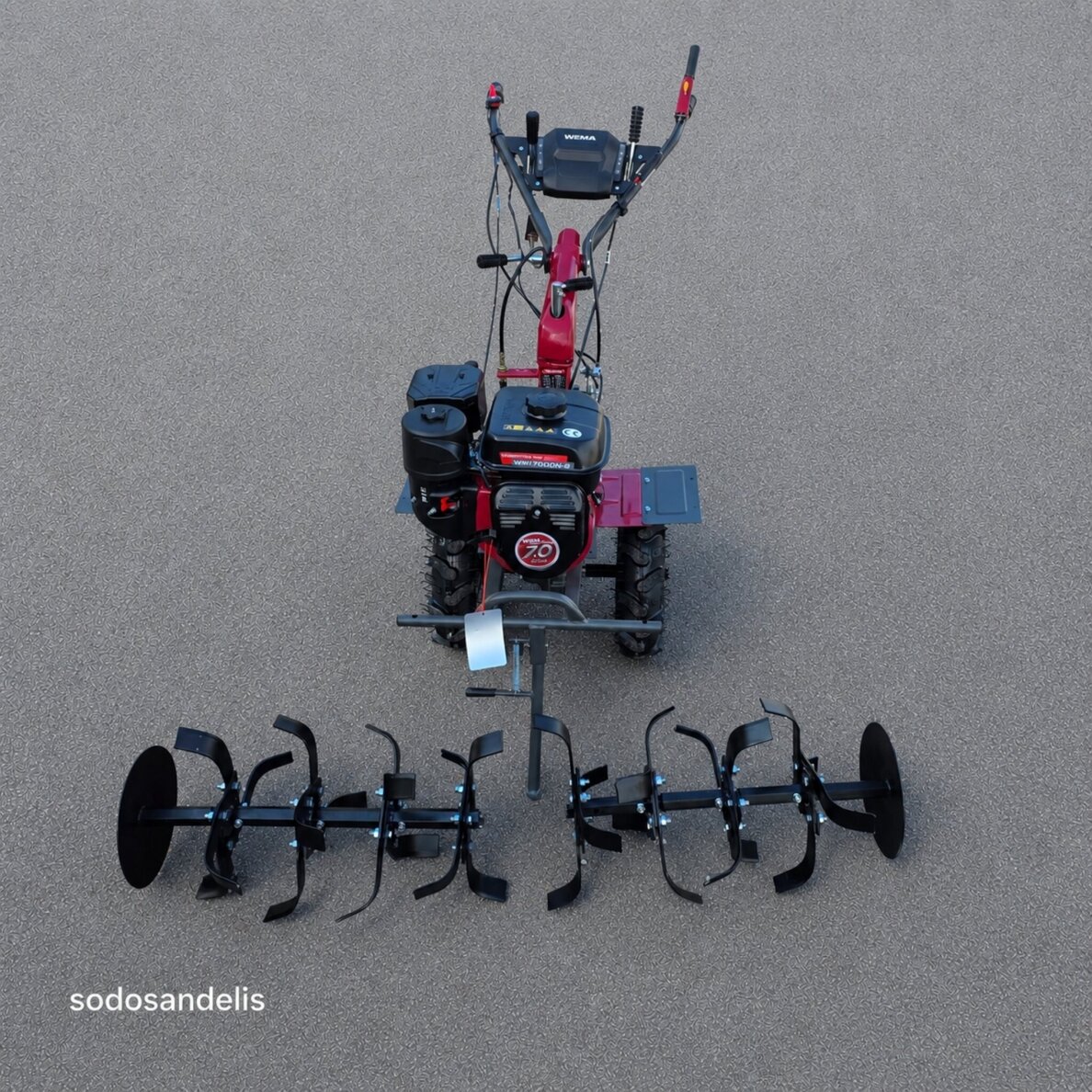

The segmental tines are composed of 2+1+1 sections on each side. By changing the number of mounted sections you can choose three working widths:

60 cm – with 2 sections on each side, 16 blades;
80 cm – with 3 sections on each side, 24 blades;
100 cm – with 4 sections on each side, 32 blades.

The set includes two side protective plates. They are mounted at the ends of the tines, help protect adjacent plants and limit soil ejection to the sides.

Tilling depth is adjusted by a depth limiter. Depending on soil hardness, moisture and the selected gear, the working depth reaches 15–30 cm

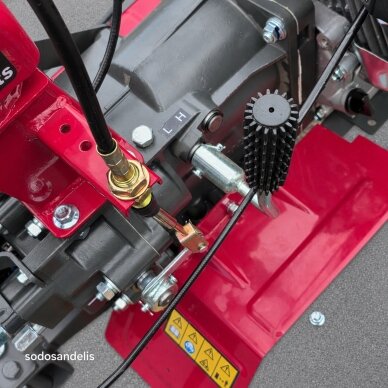

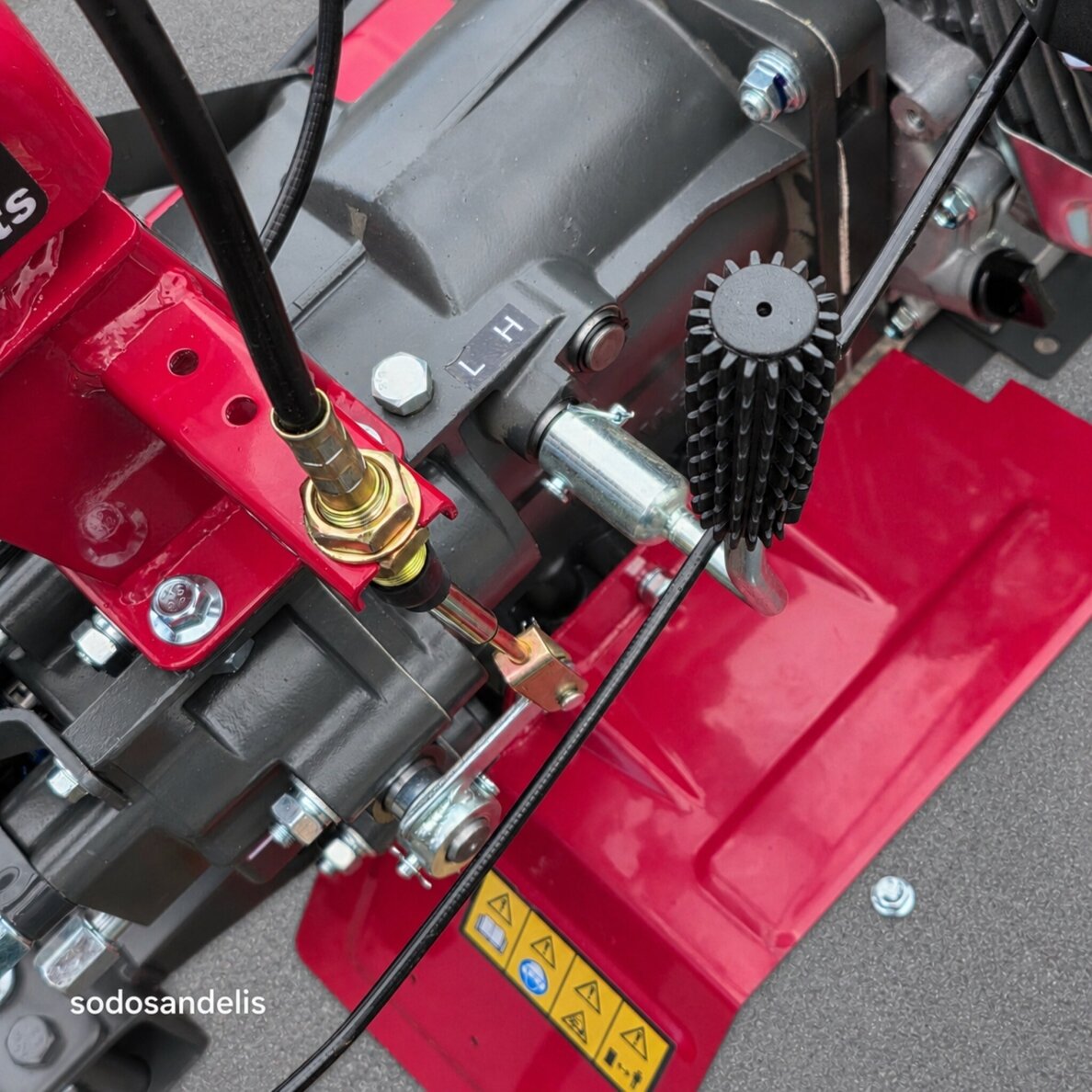

The mechanical transmission has high and low speed ranges:

Total gears: 4 forward gears; 2 reverse gears.

Lower gears are intended for tilling, ploughing and working in heavier soil. Higher gears are used for transport and for work with implements adapted for that purpose. Reverse gears facilitate turning and pulling the tiller out of the ground.

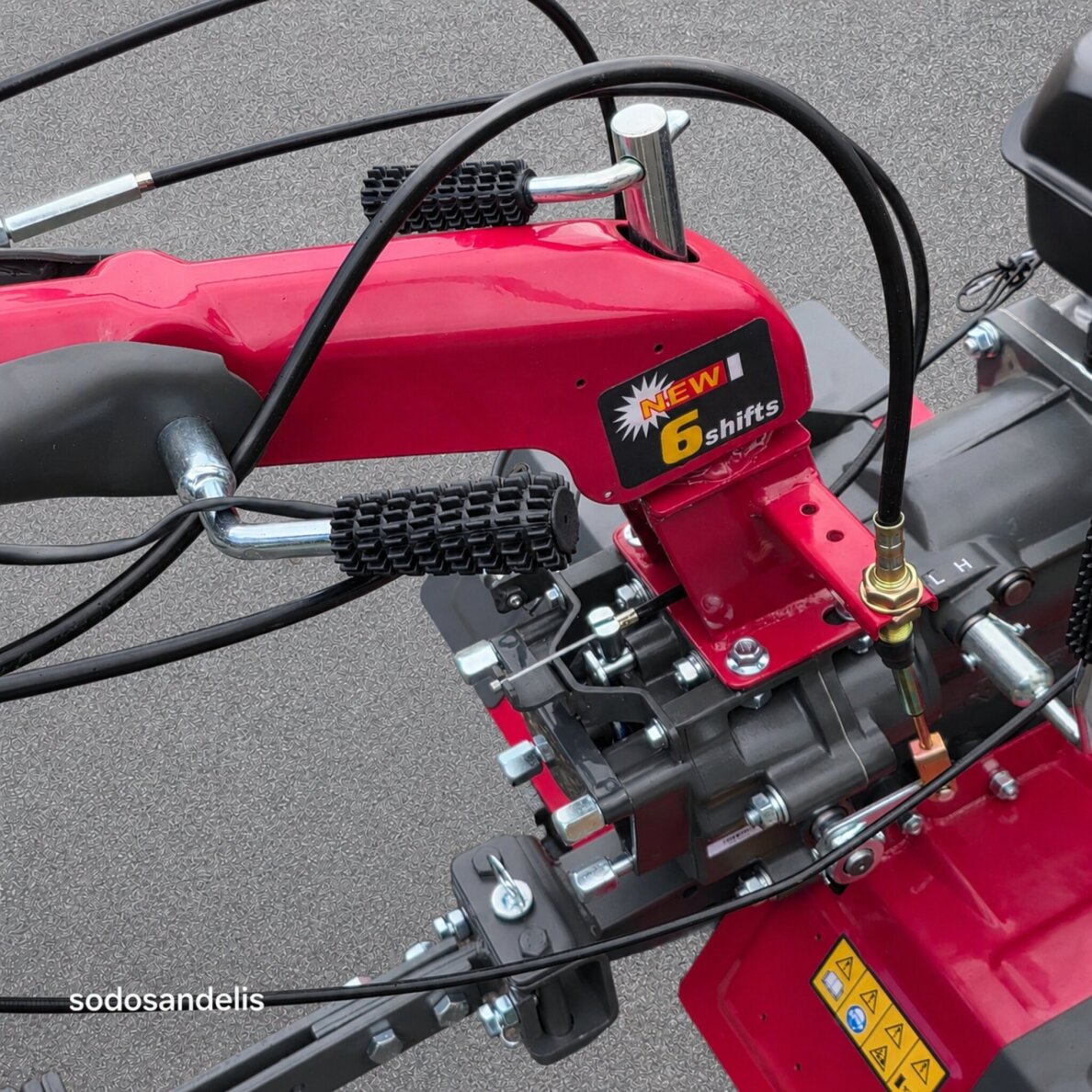

For more comfortable operation KM anti-vibration handle

The KM-type control handle design reduces vibration transmitted to the operator. Engine speed, clutch and gear control elements are conveniently arranged on the handle.

Working with additional implements

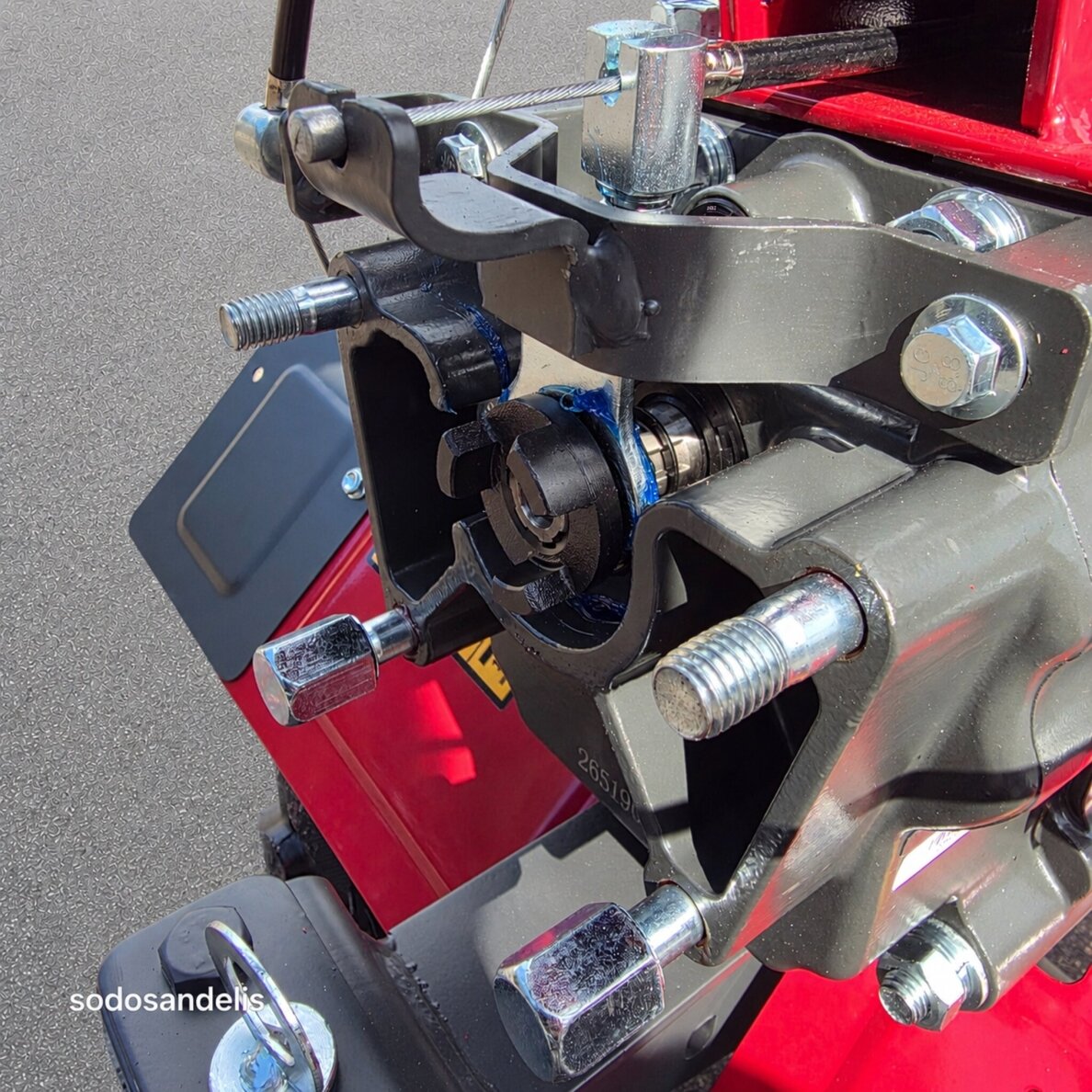

The tiller is equipped with a power take-off connection for active implements and a mounting point for trailed equipment. With the appropriate attachments WEIMA WM1000N-6 can be used for:

* soil tilling;
* ploughing and furrowing;
* planting and digging potatoes;
* mowing grass;
* working with a rear active tiller;
* working with a trailer;
* other seasonal agricultural jobs.

Additional implements are sold separately.

Technical data

Manufacturer: WEIMA
Model: WM1000N-6
Equipment type: Gasoline power tiller
Engine: WEIMA WM170F-2
Engine type: Four-stroke, single-cylinder, OHV
Cooling: Forced air cooling
Displacement: 212 cm³
Maximum declared power: 7 AG
Rated power: 4,0 kW esant 3600 aps./min.
Maximum torque: 12 Nm esant 2800 aps./min.
Starting: Manual starter
Fuel: Gasoline
Fuel tank capacity: 4 l
Engine oil capacity: 0,6 l

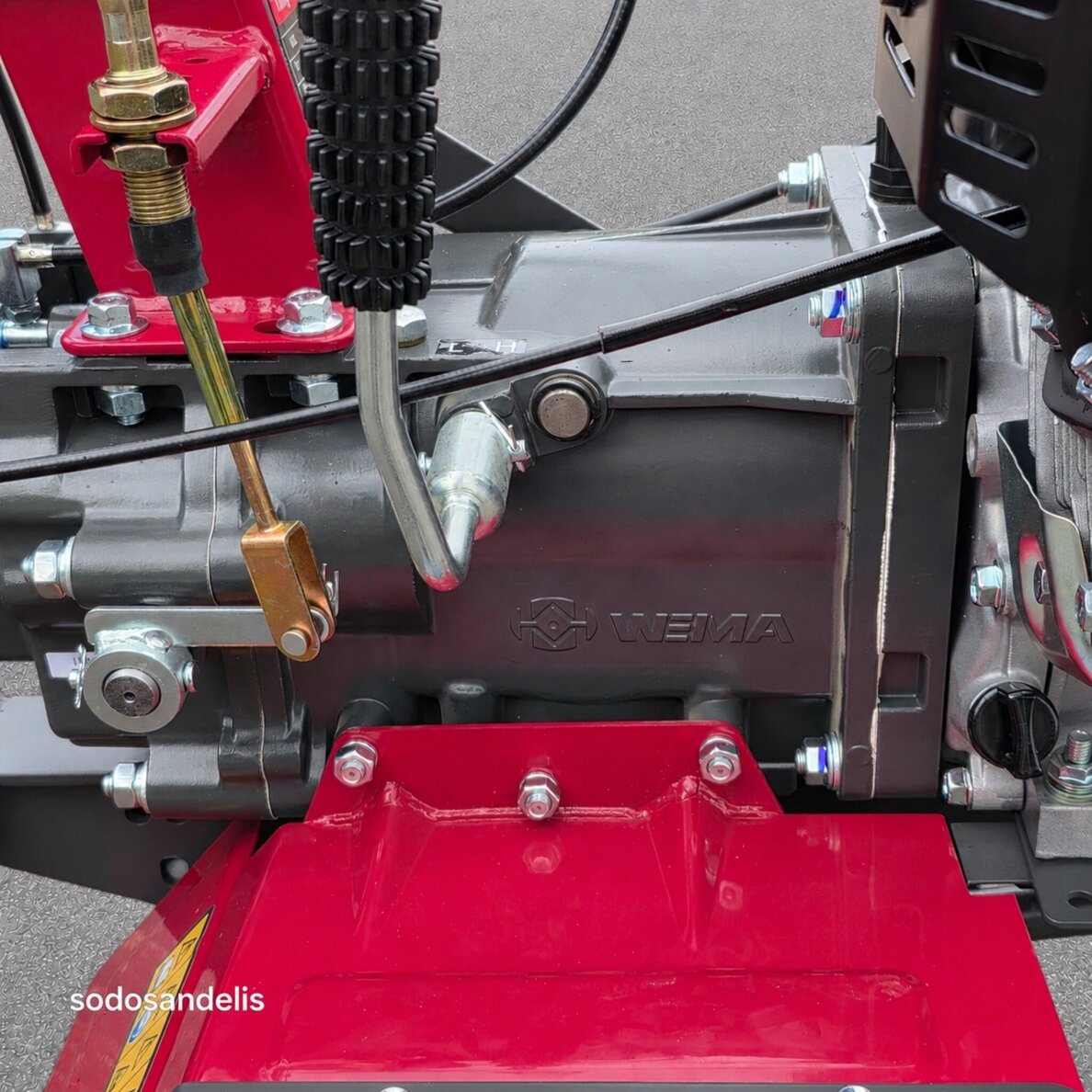

Transmission: Mechanical, gear-driven
Gears: 4 forward / 2 reverse
Speed ranges: High and low
Tilling width: 600 / 800 / 1000 mm
Tilling depth: 150–300 mm
Tine construction: 2+1+1 sections on each side
Maximum number of blades: 32
Protective plates: 2 vnt.
Wheels: Pneumatic, 4.00–8
Handle: KM-type, vibration-reducing
Dimensions: 1600 × 1000 × 1050 mm
Net weight: 110 kg
Weight with packaging: 125 kg
Emissions standard: Euro V
