Gearbox for Husqvarna 122 124 125 128 129; Jonsered BC2126, BC2128, BC2228, GC2126C

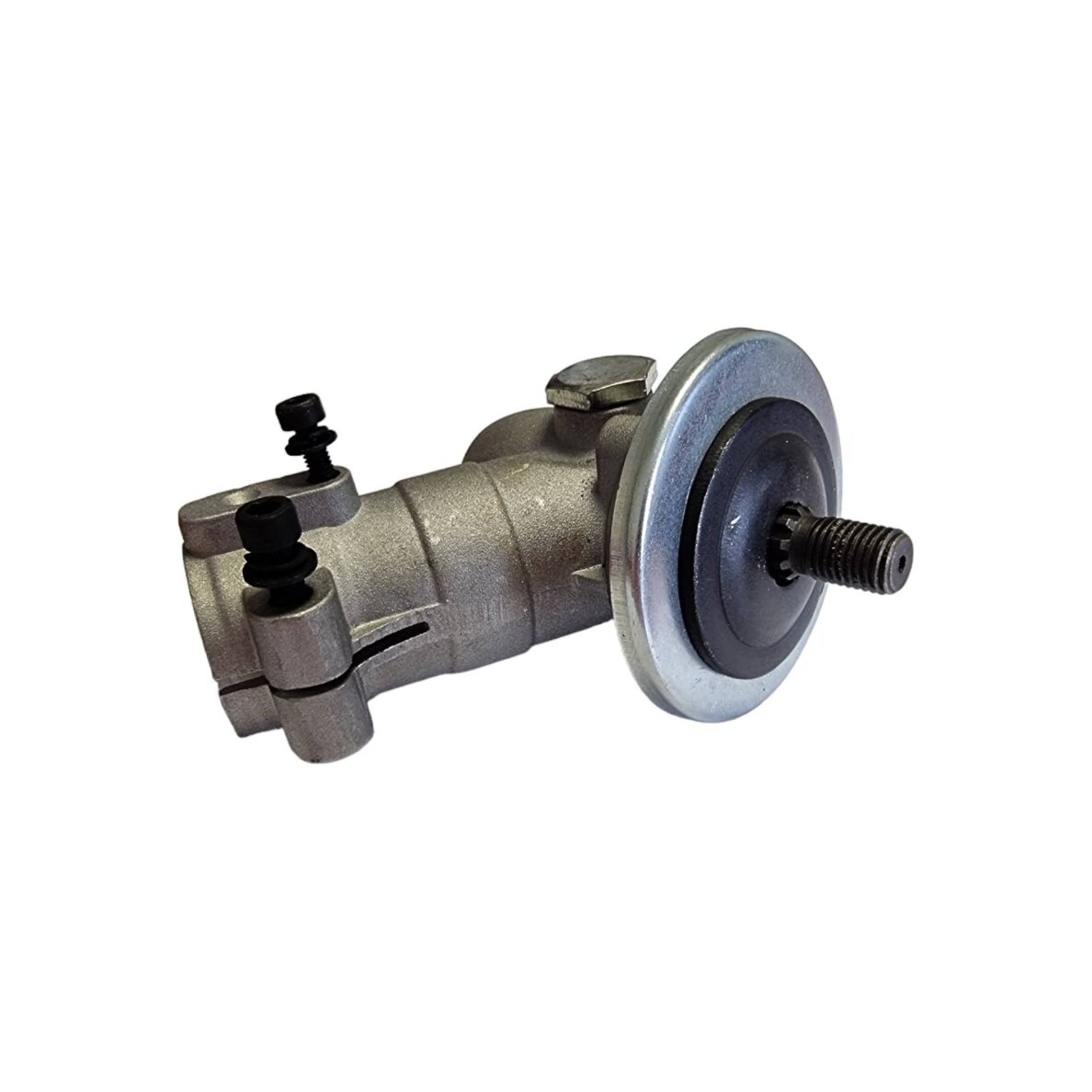

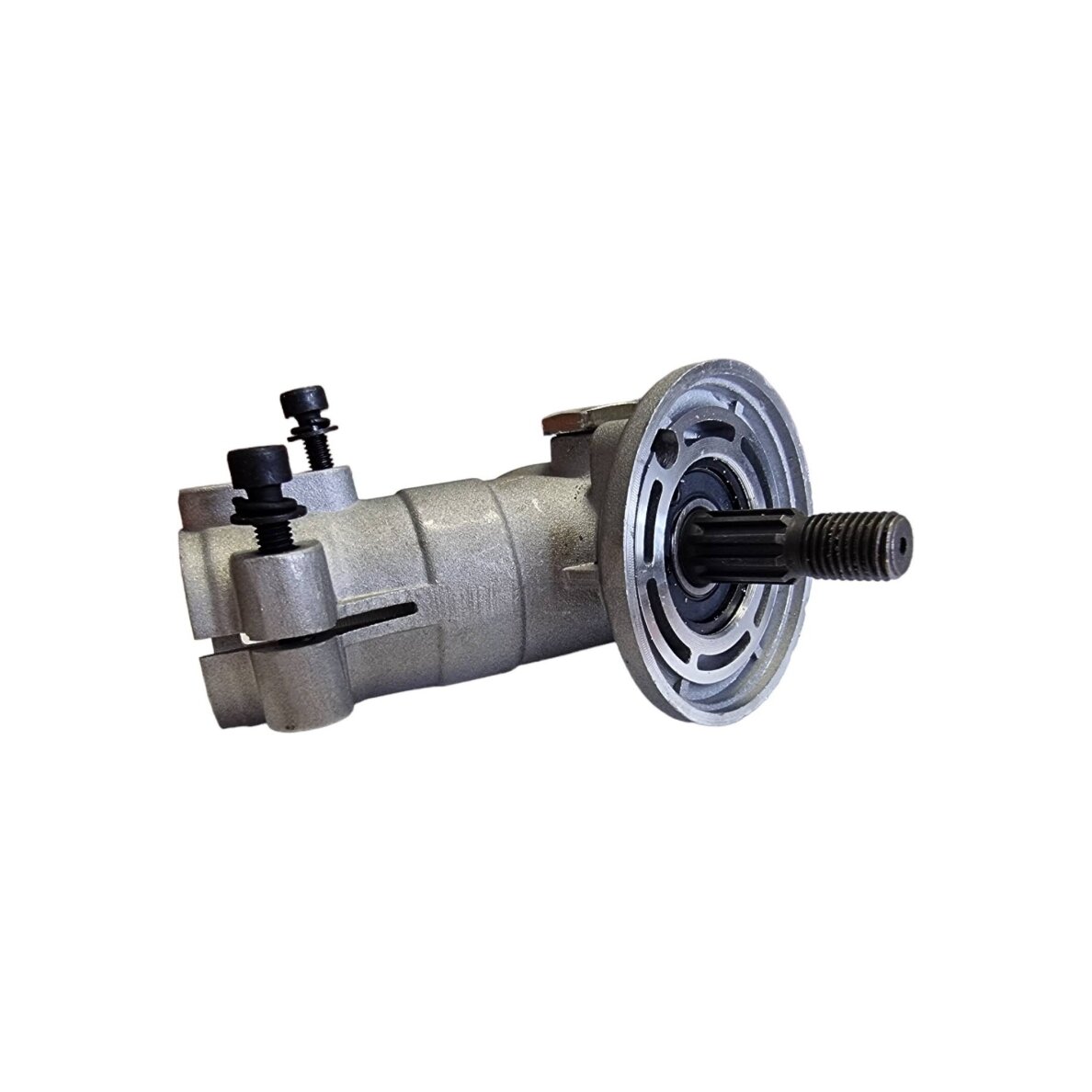

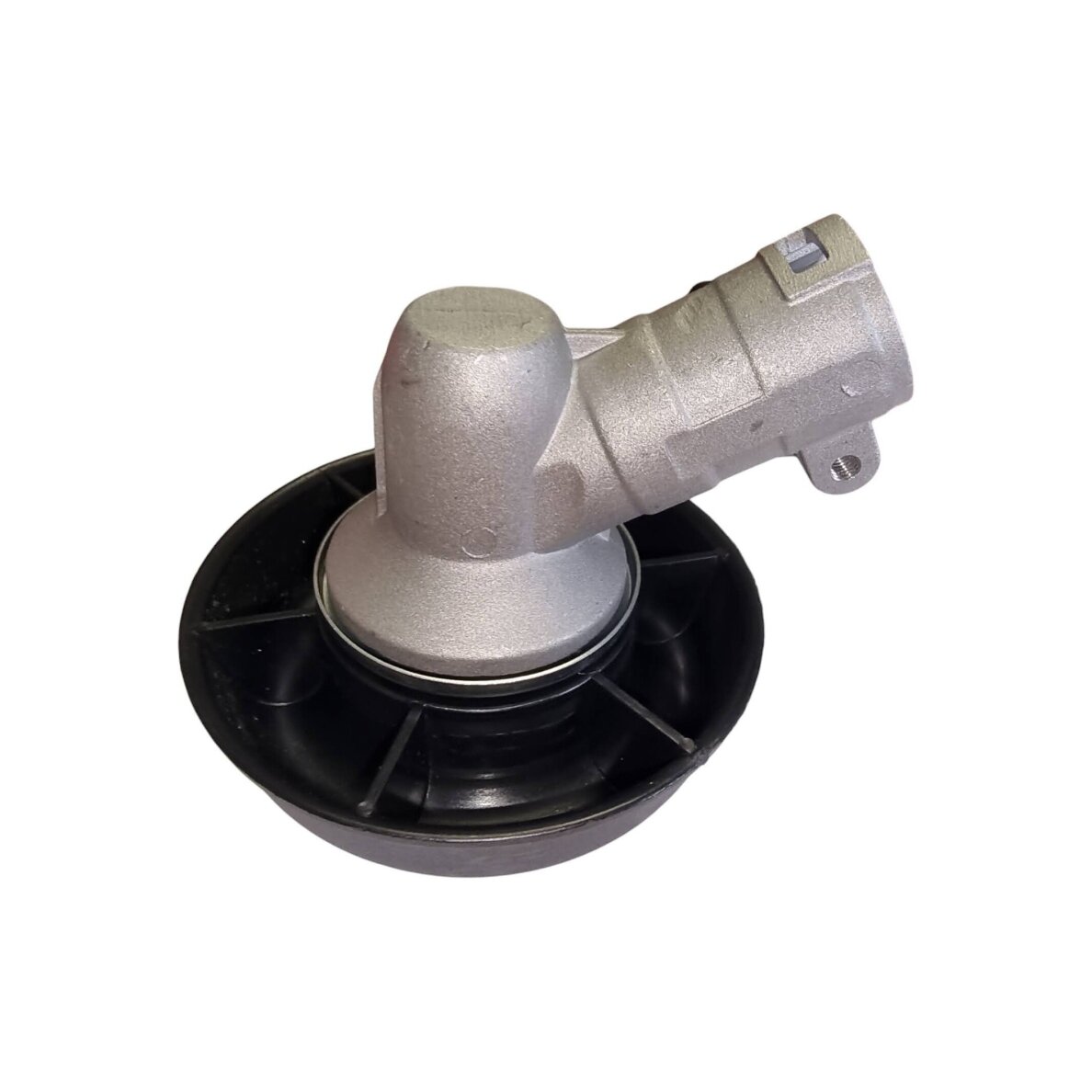

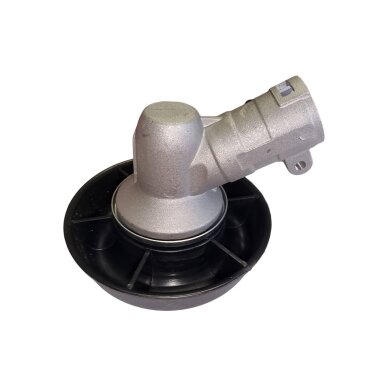

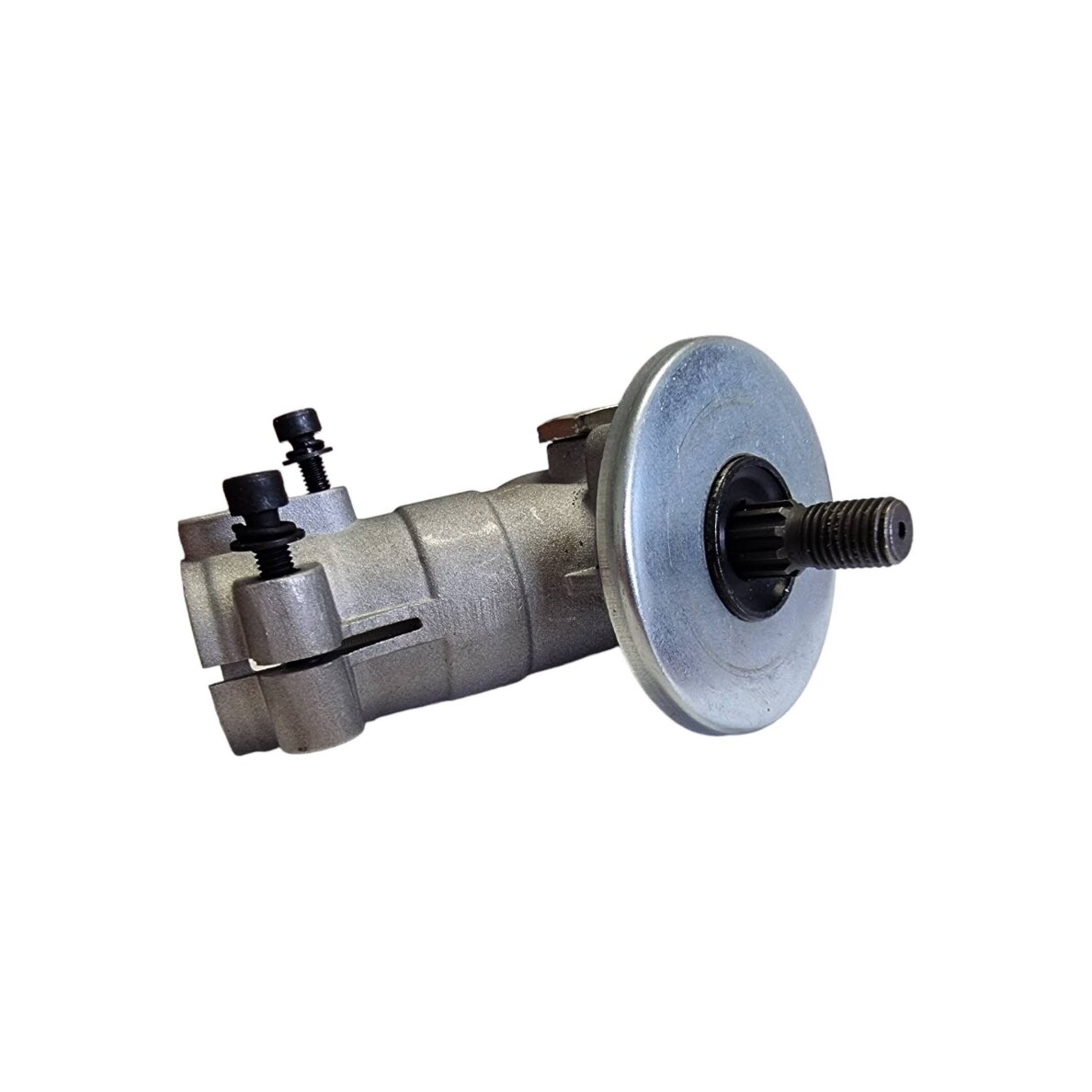

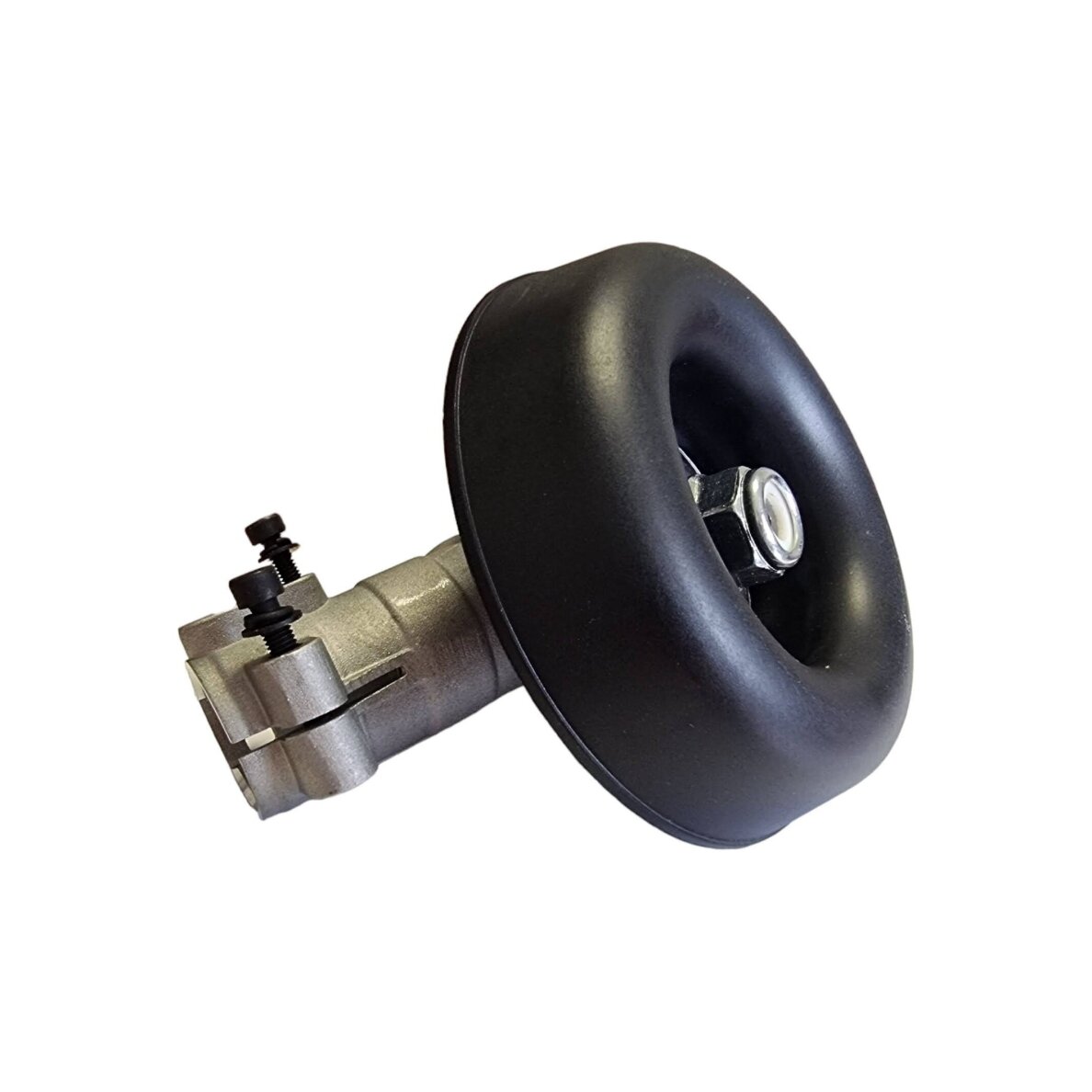

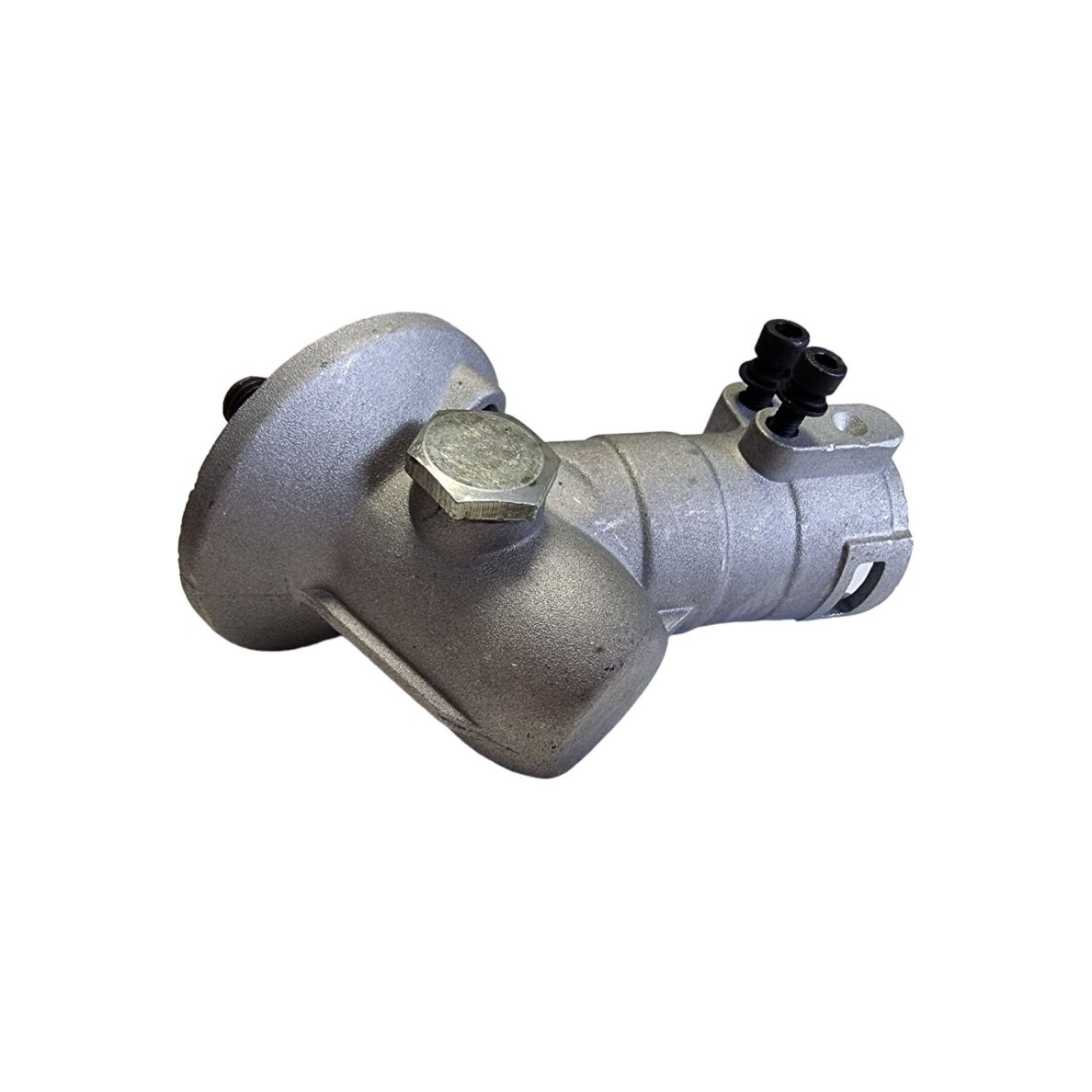

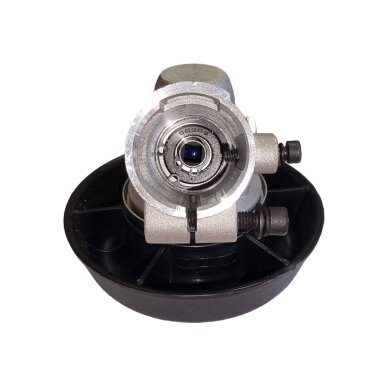

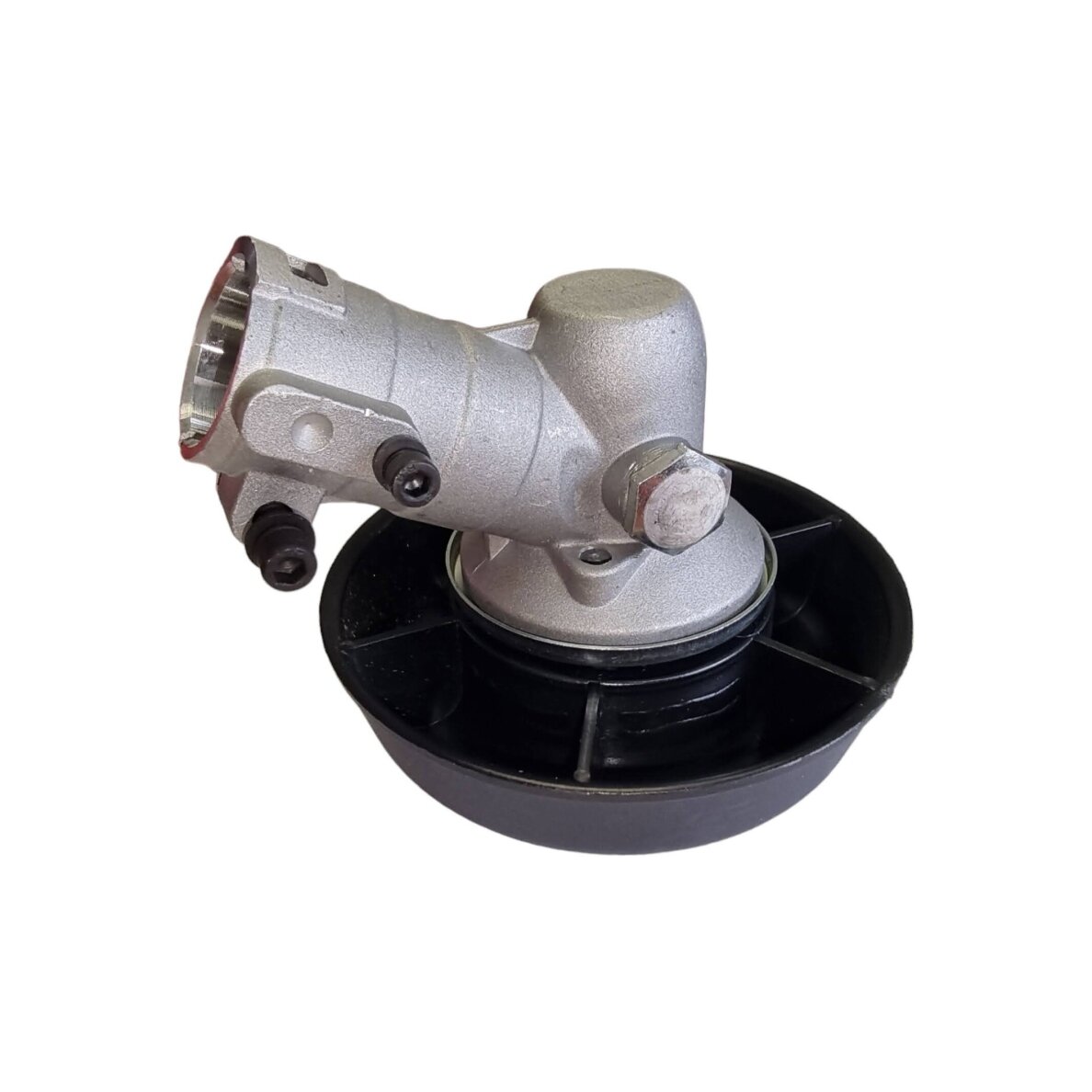

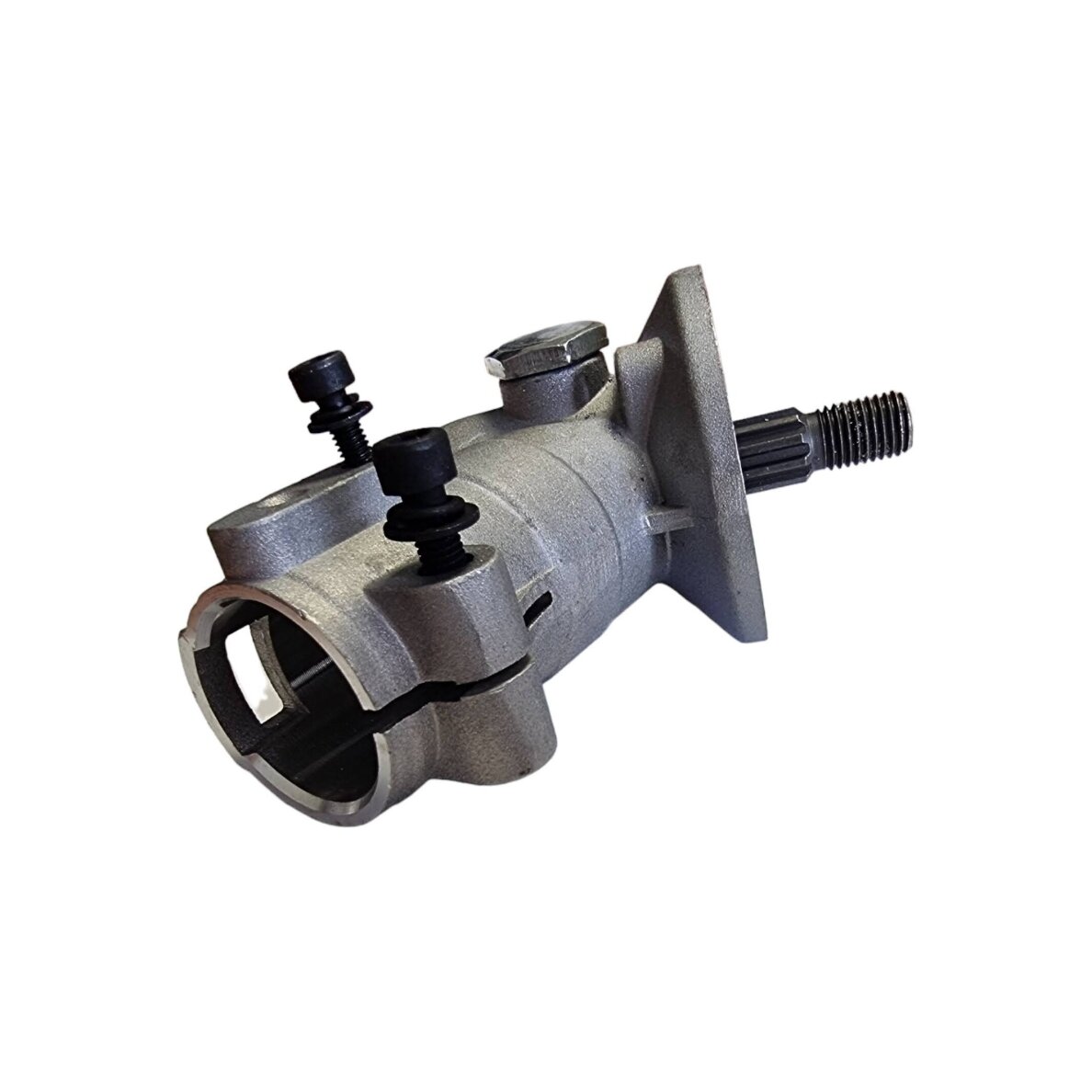

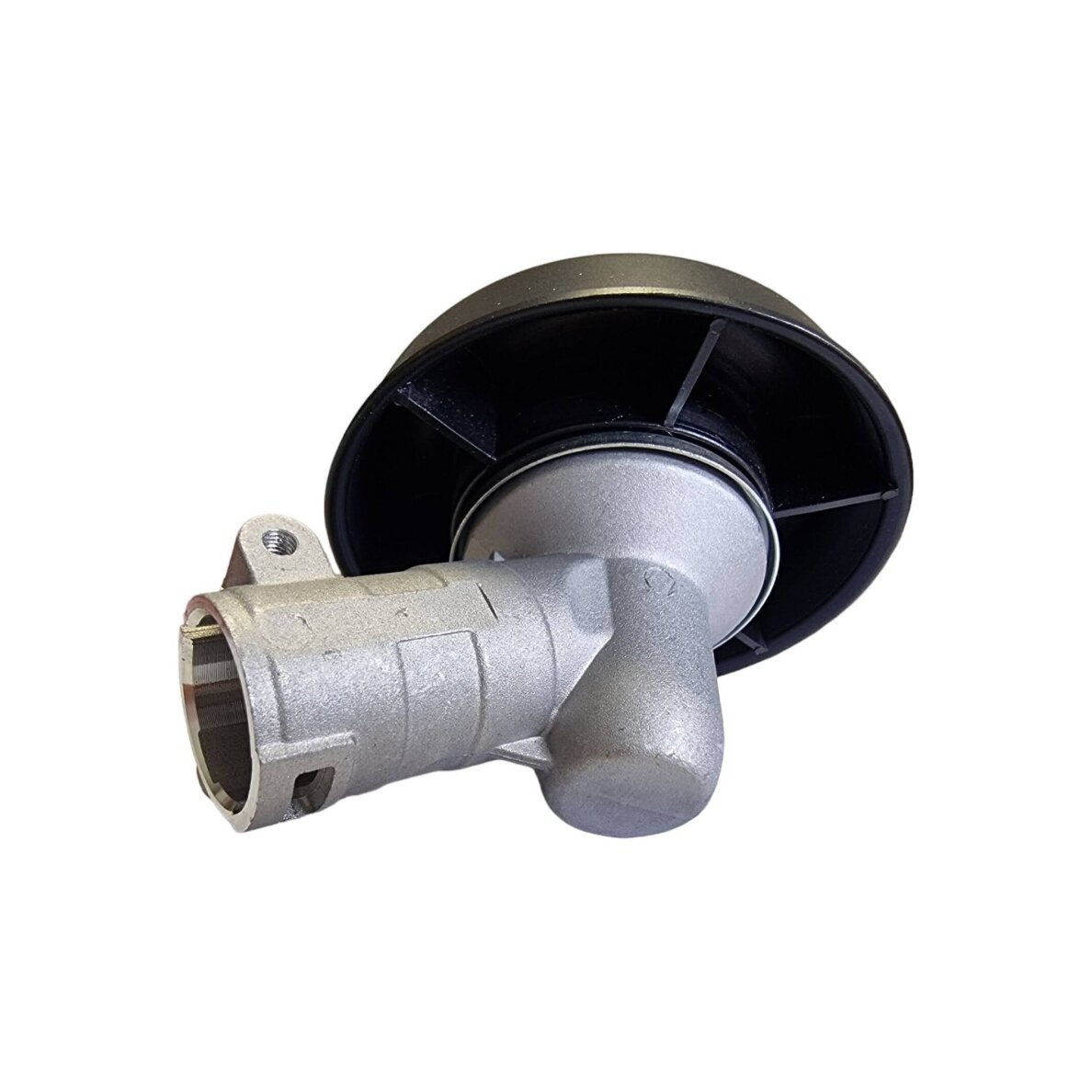

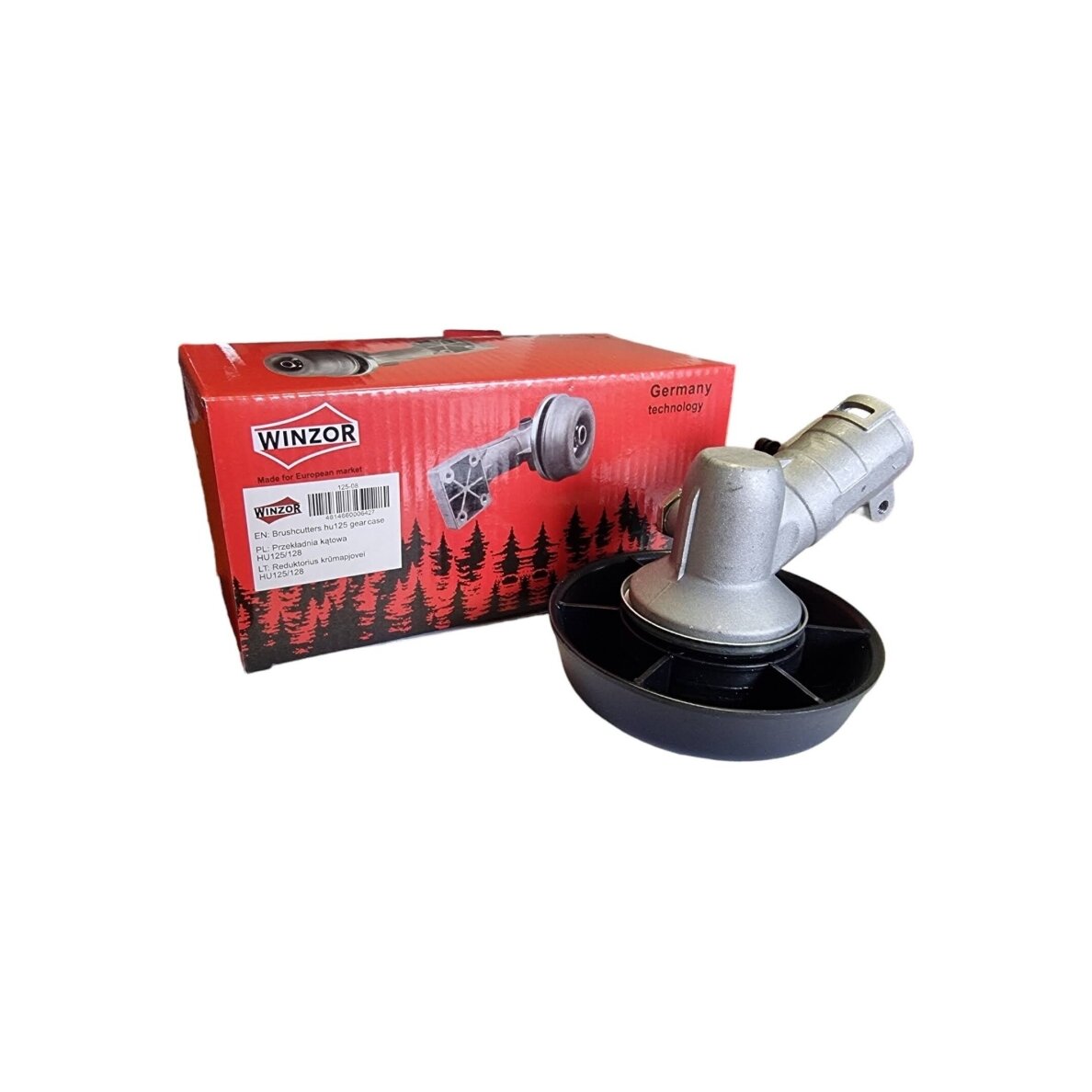

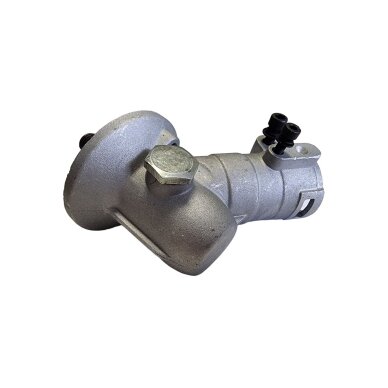

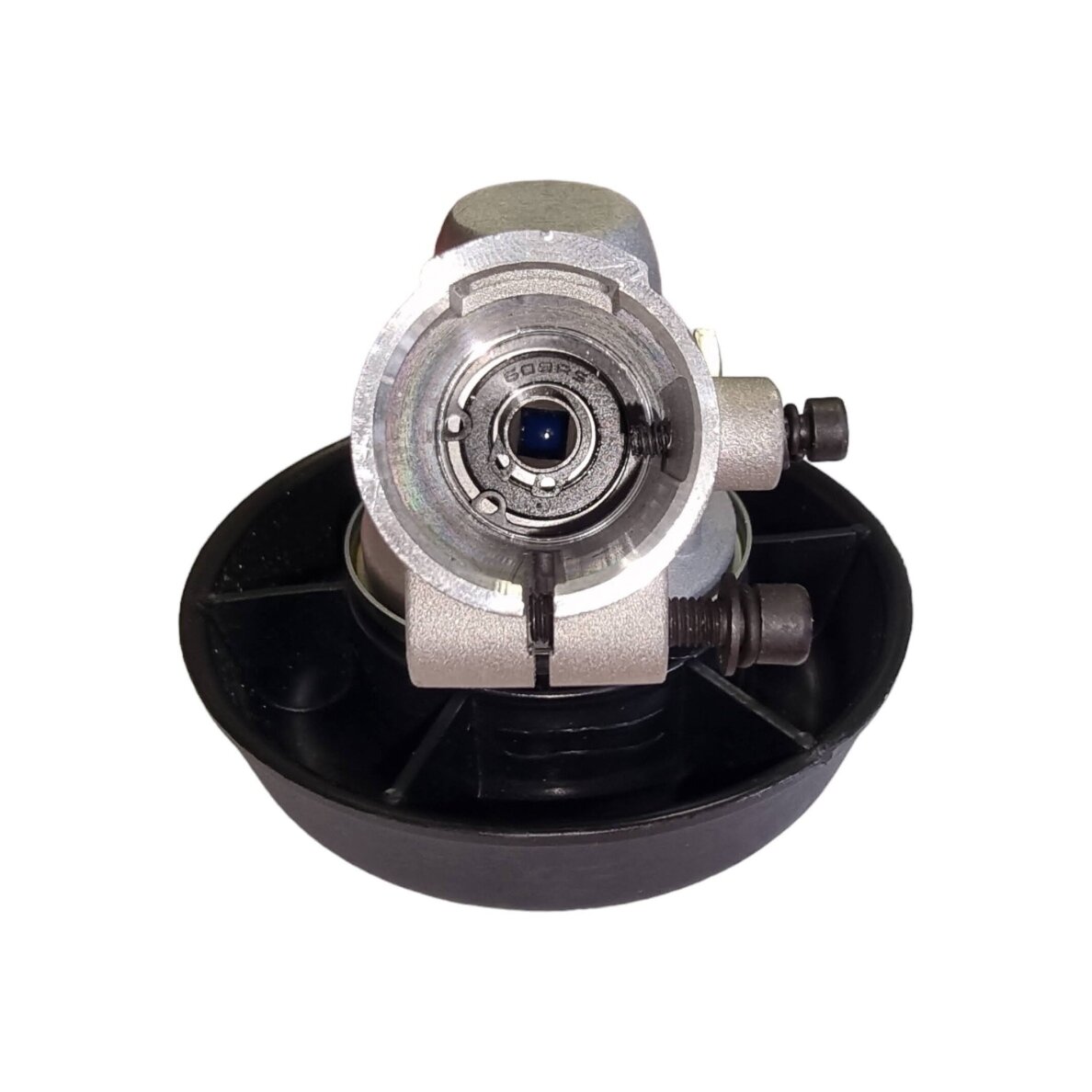

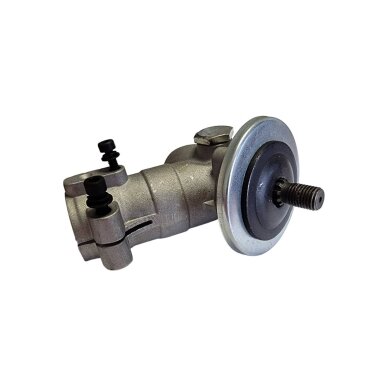

This Husqvarna 128R angle gearbox – a non-original lower gear unit, replacing the original Husqvarna part 530096295, also written as 530 09 62-95.

In official Husqvarna catalogs 530096295 is called bevel gear, i.e. an angle gearbox unit. The same number is used in many trimmer and brushcutter models of the 122, 124, 125, 128 and 129 series. Jonsered catalogs list the same gearbox for models BC2126, BC2128, BC2228 and GC2126 C.

Compatible Husqvarna Models

The gearbox is used on:

Husqvarna 122LD
Husqvarna 122LDX
Husqvarna 122LK
Husqvarna 122R
Husqvarna 122RJ
Husqvarna 124R
Husqvarna 125L
Husqvarna 125LD
Husqvarna 125LDX
Husqvarna 125R
Husqvarna 125RJ
Husqvarna 128DJX
Husqvarna 128L
Husqvarna 128LD
Husqvarna 128LDX
Husqvarna 128LX
Husqvarna 128R
Husqvarna 128RJ
Husqvarna 129DJX
Husqvarna 129L
Husqvarna 129LDX
Husqvarna 129LK
Husqvarna 129R
Husqvarna 129RJ
Compatible Jonsered Models

The same gearbox is used on:

Jonsered BC2126
Jonsered BC2128
Jonsered BC2228
Jonsered GC2126 C

Original part number:

530096295
530 09 62-95

So the old list of product models here was essentially correct, it just could be considerably expanded.

Function of the gearbox

The lower angle gearbox connects to the brushcutter's drive shaft and, via gears, transmits engine rotation to the cutting head or blade.

Gearboxes usually need to be changed when there is excessive play, damaged gears, a sticking output shaft, a loud mechanical noise, or when the housing itself is damaged.

Before installation check the end of the drive shaft and the splines. The shaft must fully insert into the gearbox. Fit the gearbox in the correct orientation, and tighten the tube clamp screws evenly.

After installation, first rotate the cutting head or blade fastening assembly by hand. The mechanism must rotate freely, without sticking and without unusual play.
