Cylinder kit for STIHL MS170 018 MS180 MS210CBE chainsaws

This STIHL MS180 cylinder kit – a comprehensive „Winzor PRO“ engine repair set with a 38mm cylinder and a 10mm piston pin. It is designed to replace the damaged cylinder assembly of compatible STIHL 018 and MS180 chainsaws. Replacement part number – 1130 020 1208.

STIHL MS180 cylinder kit compatibility

Main models:

STIHL 018, later version with 38mm cylinder
STIHL MS180
STIHL MS180 C versions using the same type of cylinder
STIHL MS170, when fitted with the appropriate 38mm cylinder modification in the compatible 1130 series engine

Standard STIHL MS210 and 021 engines use a different 40mm cylinder and the 1123 series part number. Therefore this 38mm kit should not be chosen for an MS210 chainsaw based only on an unverified model list.

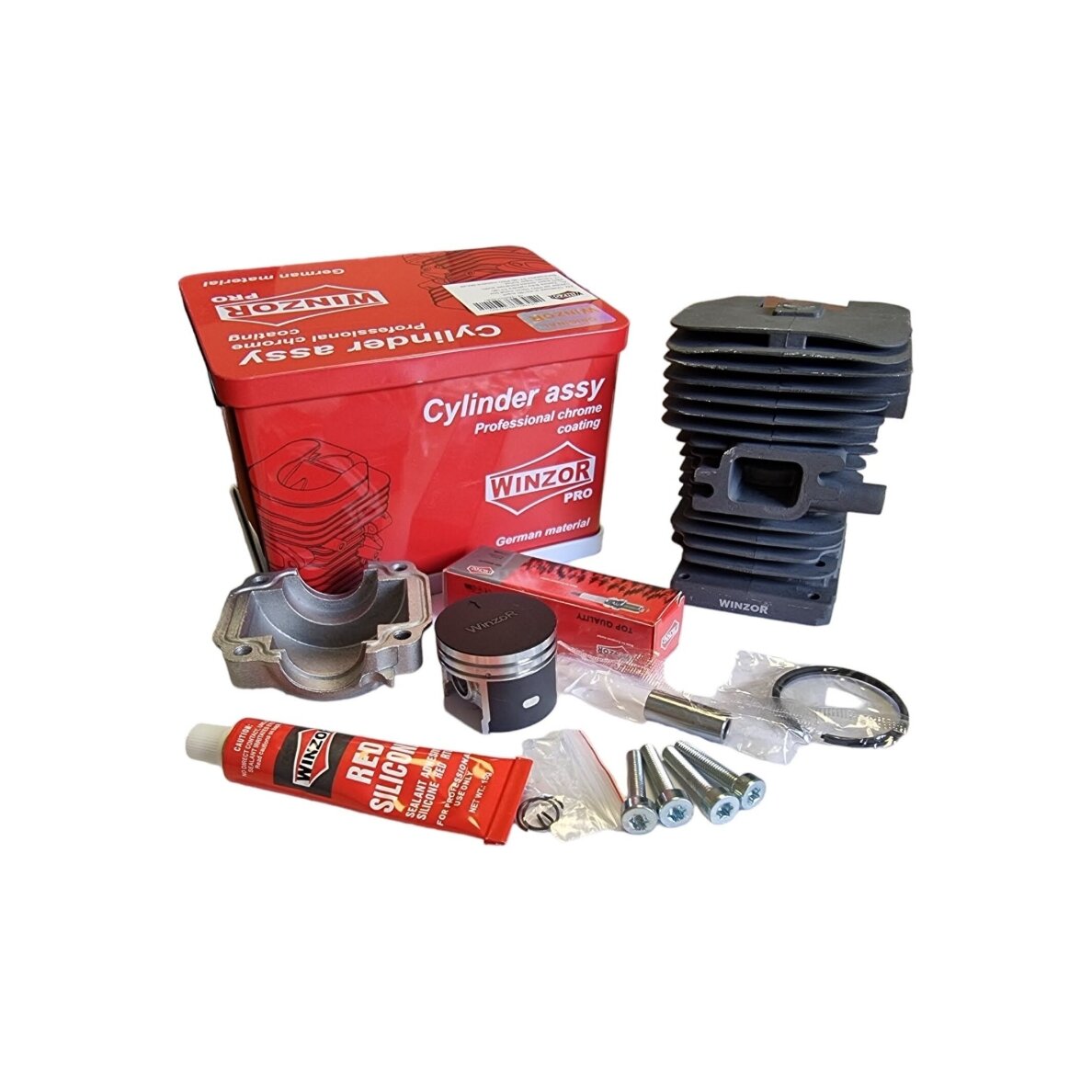

Parts included in the kit

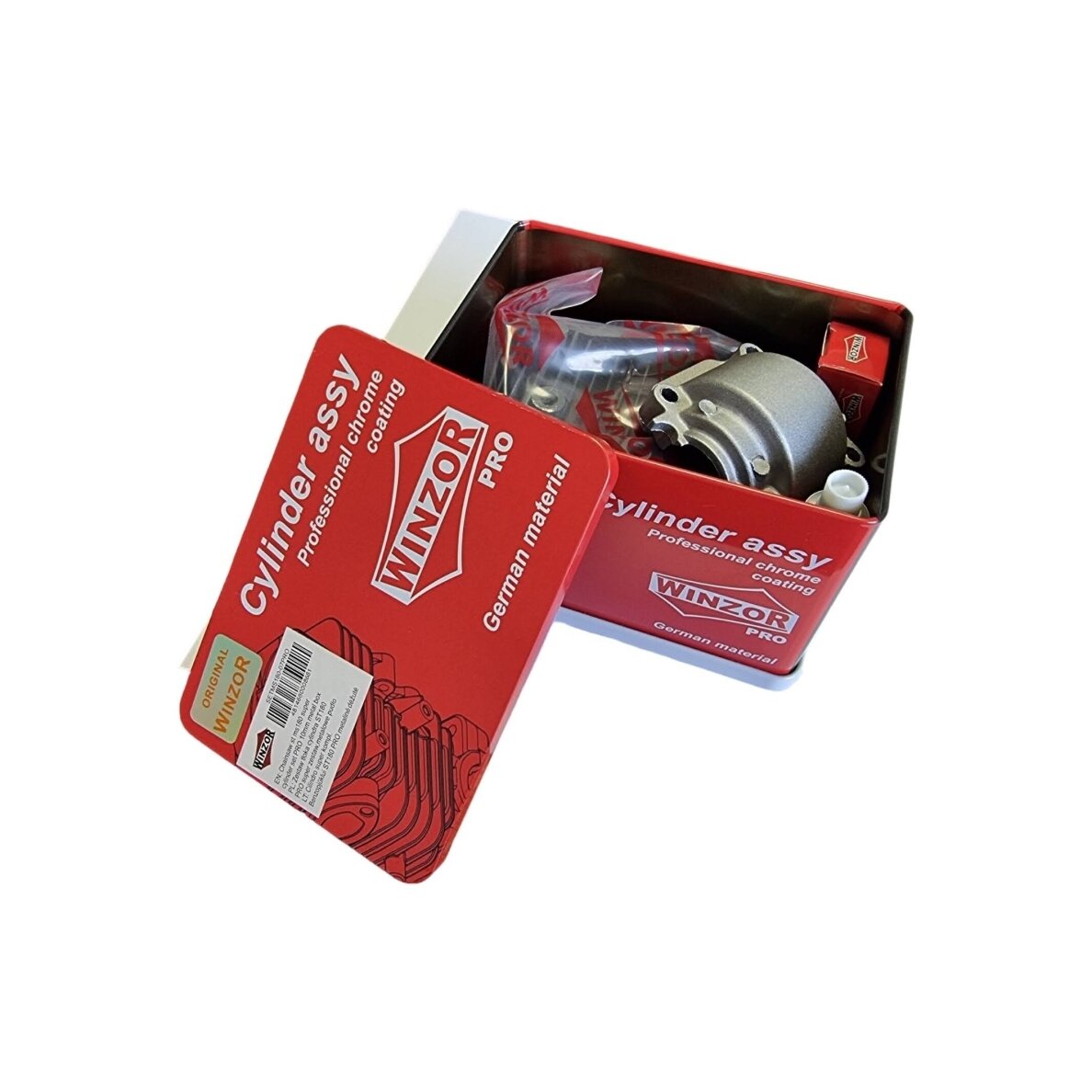

„Winzor PRO“ kit contains:

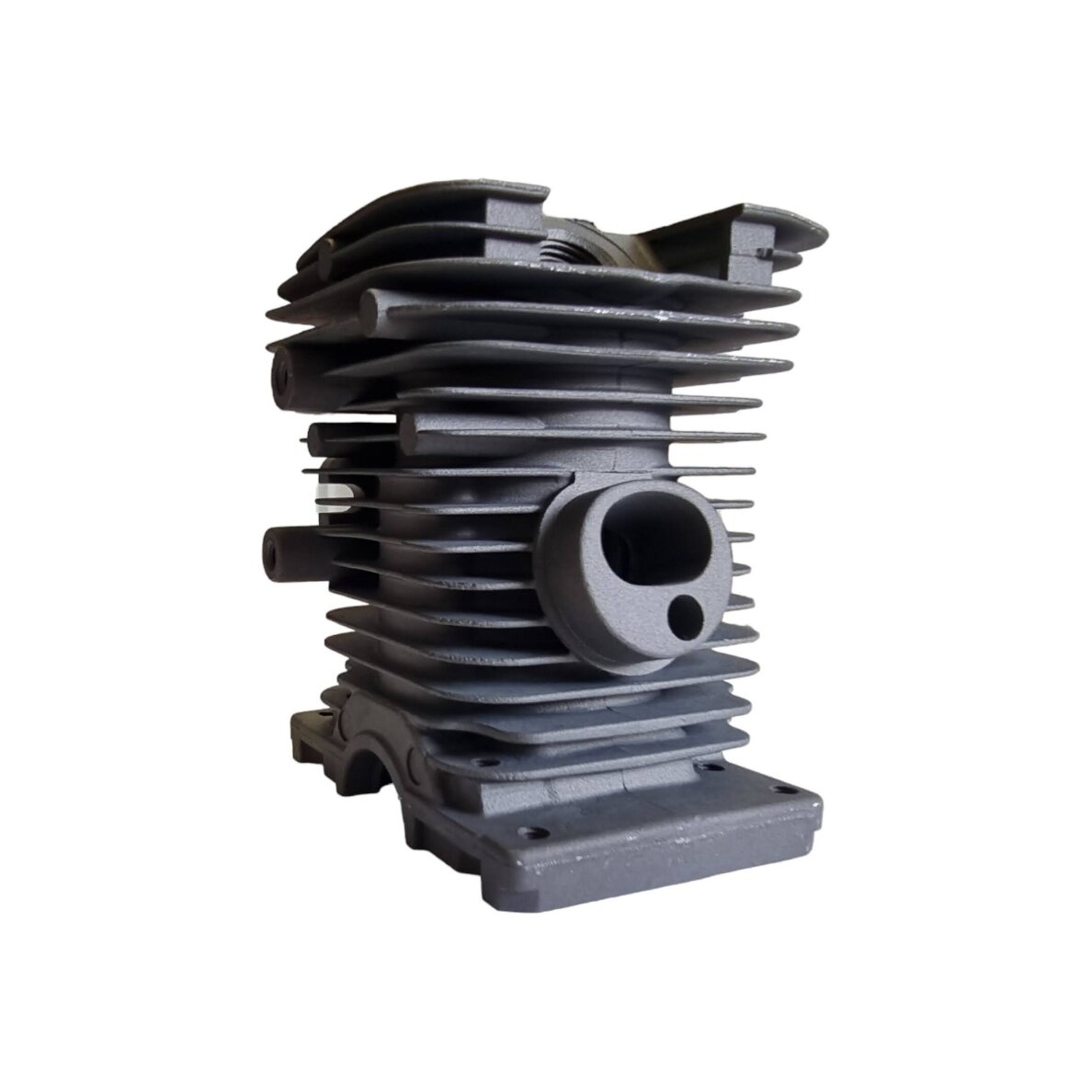

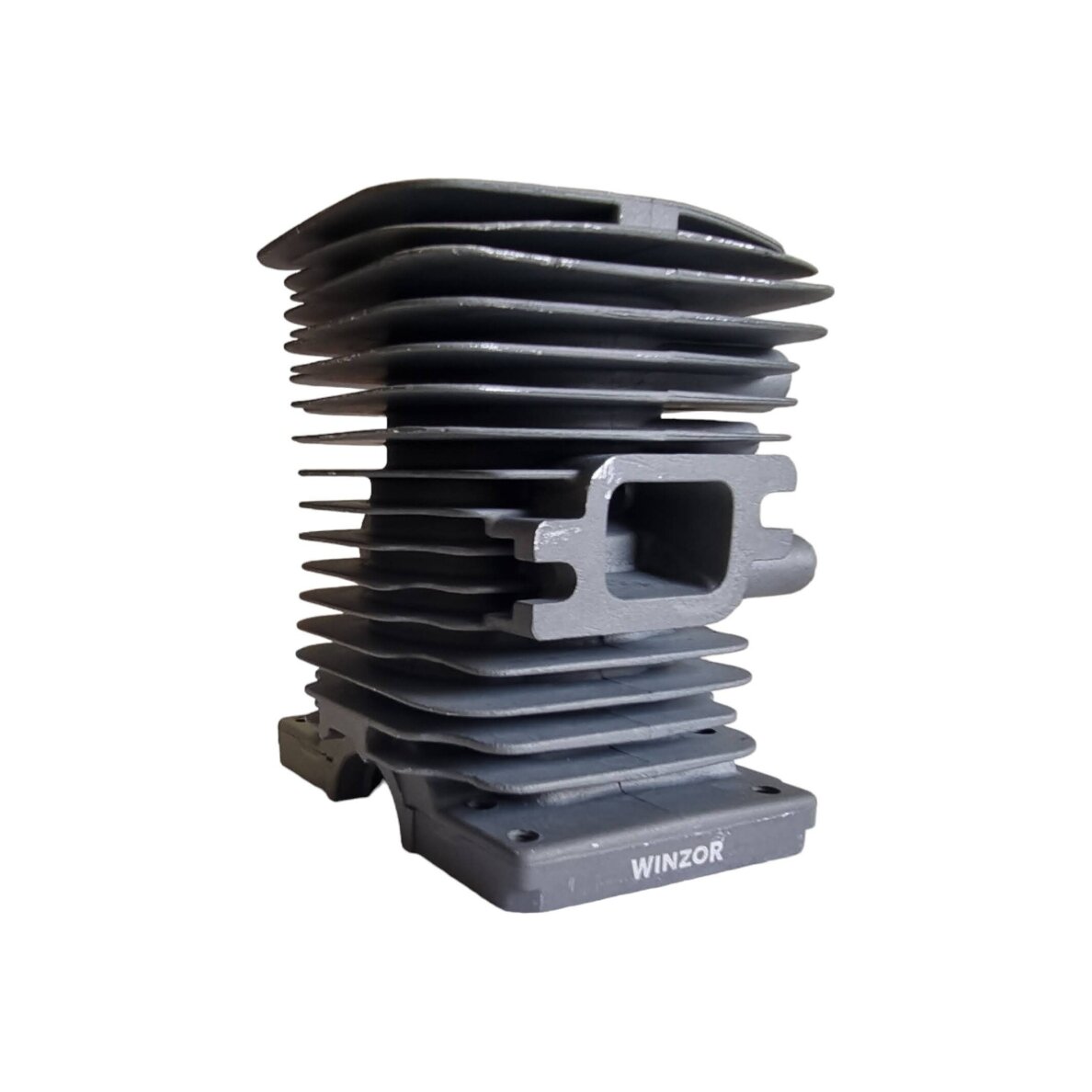

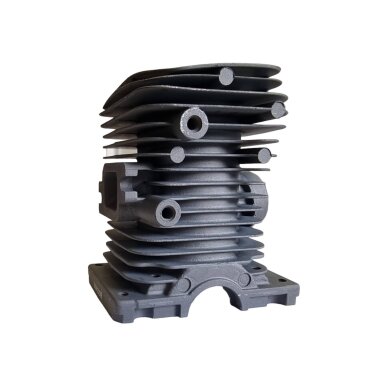

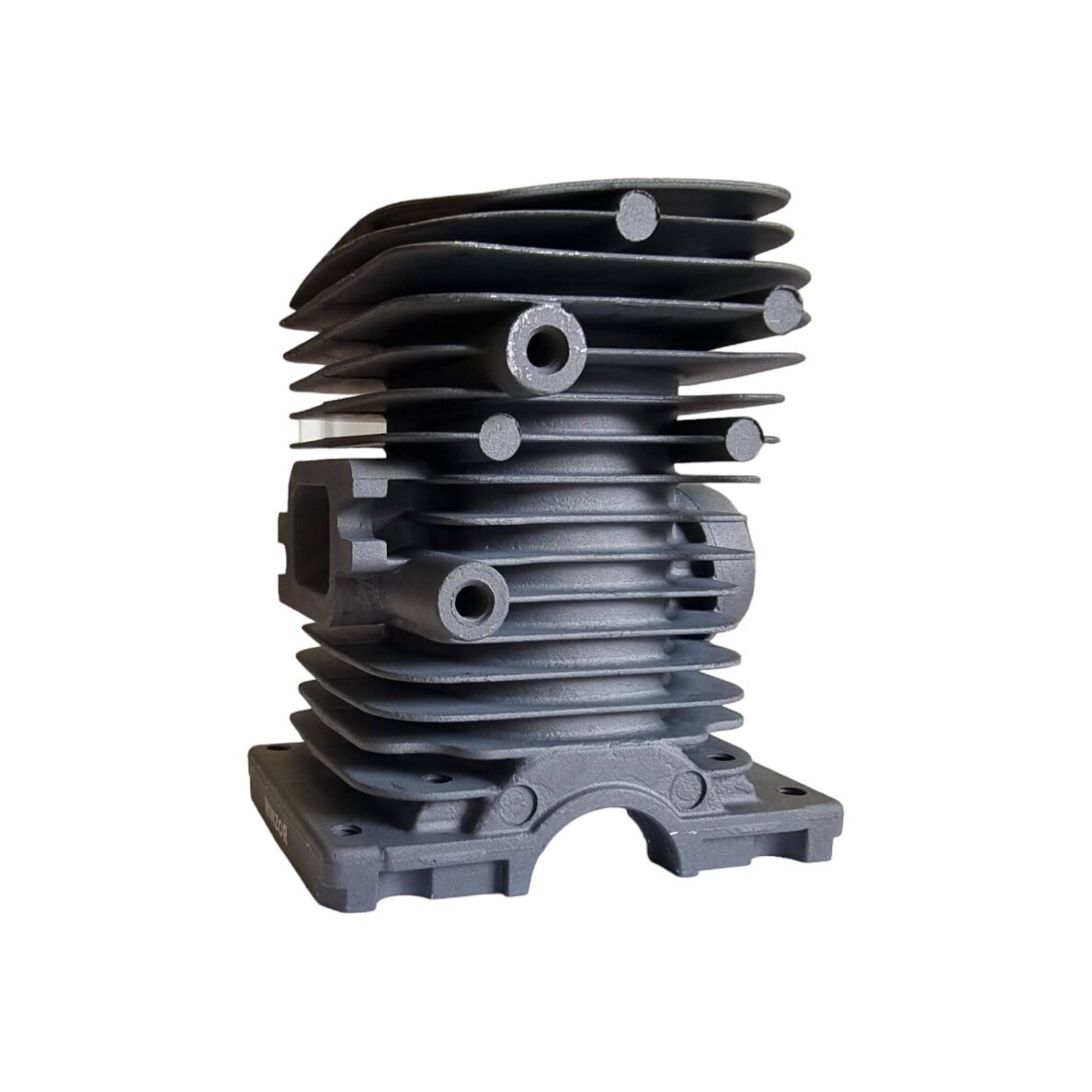

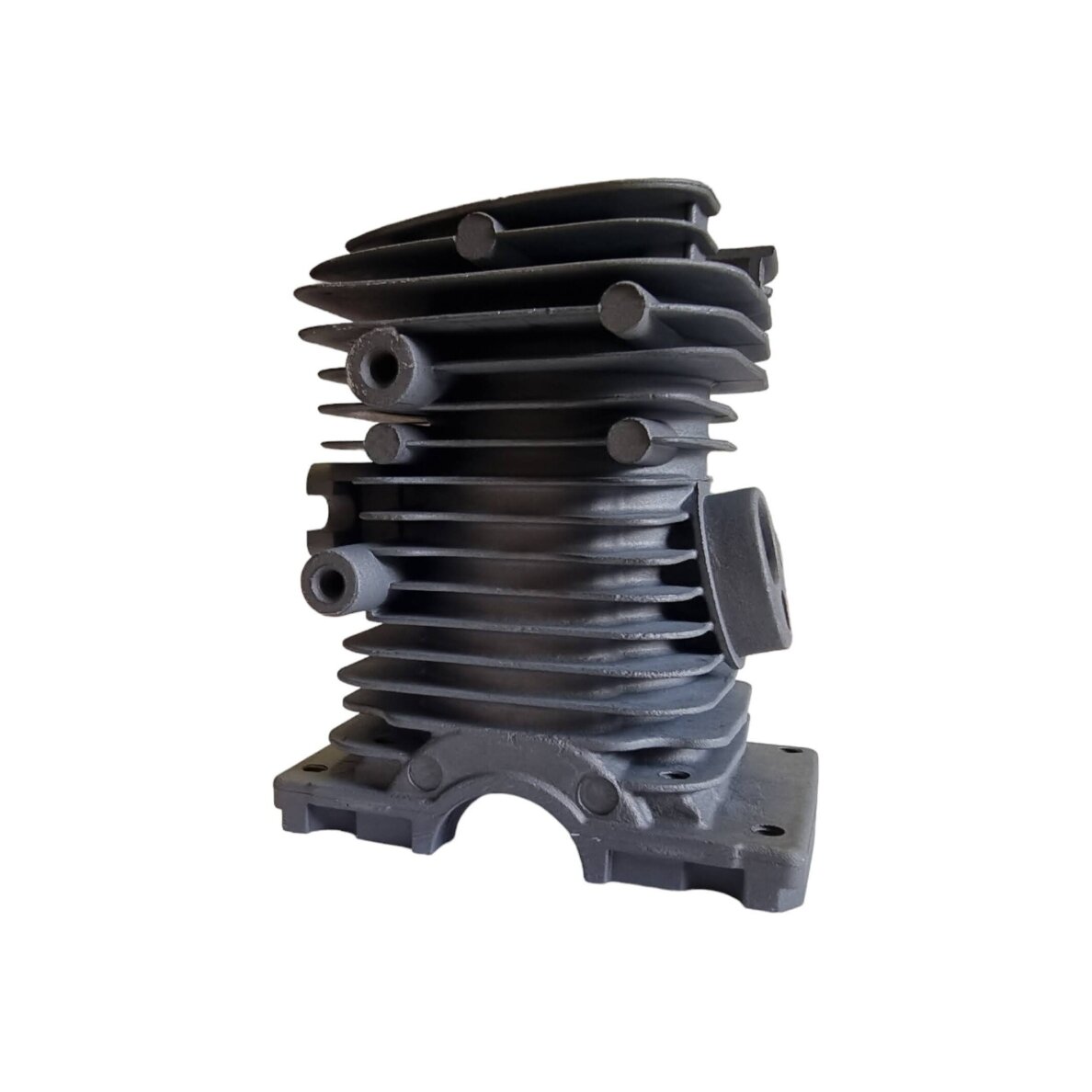

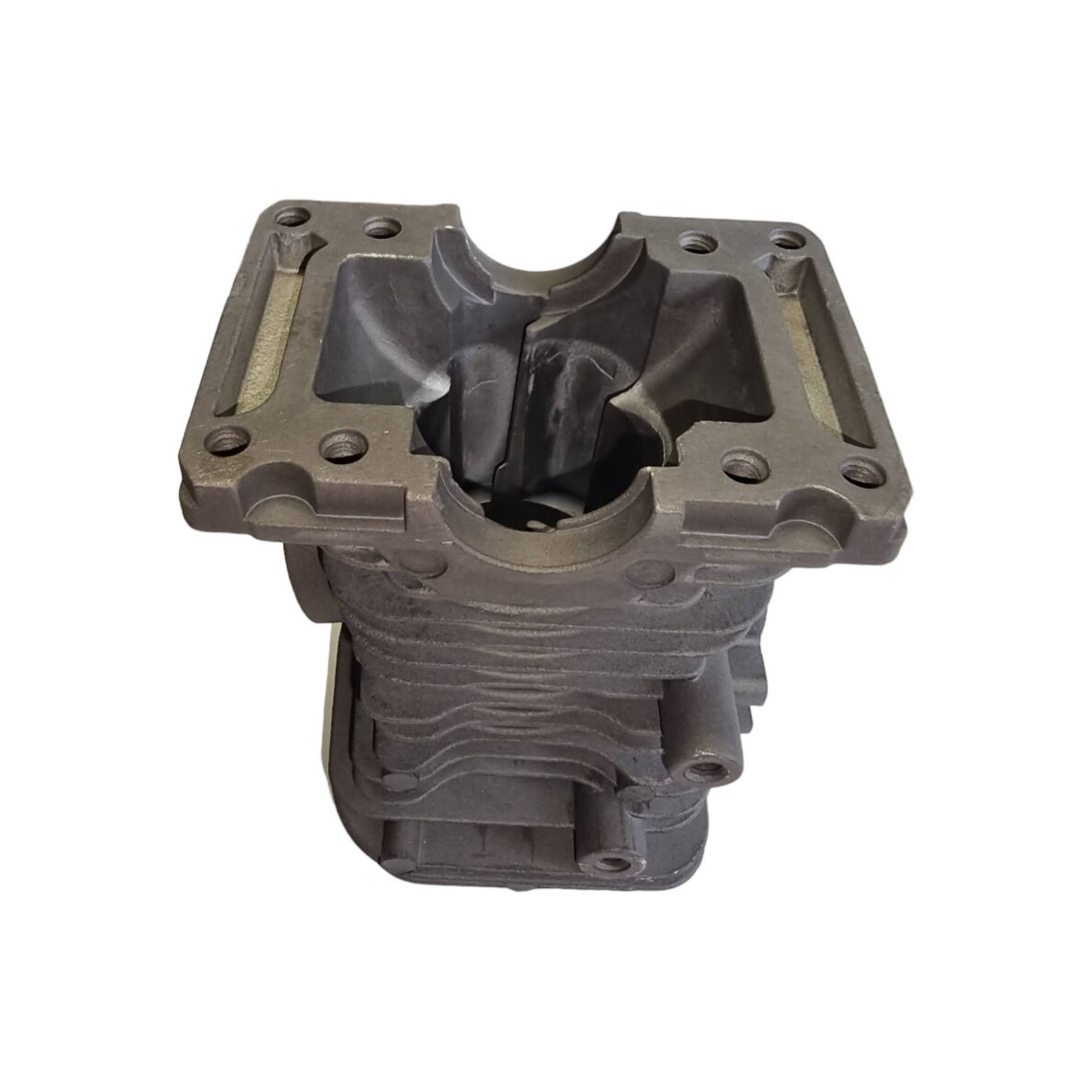

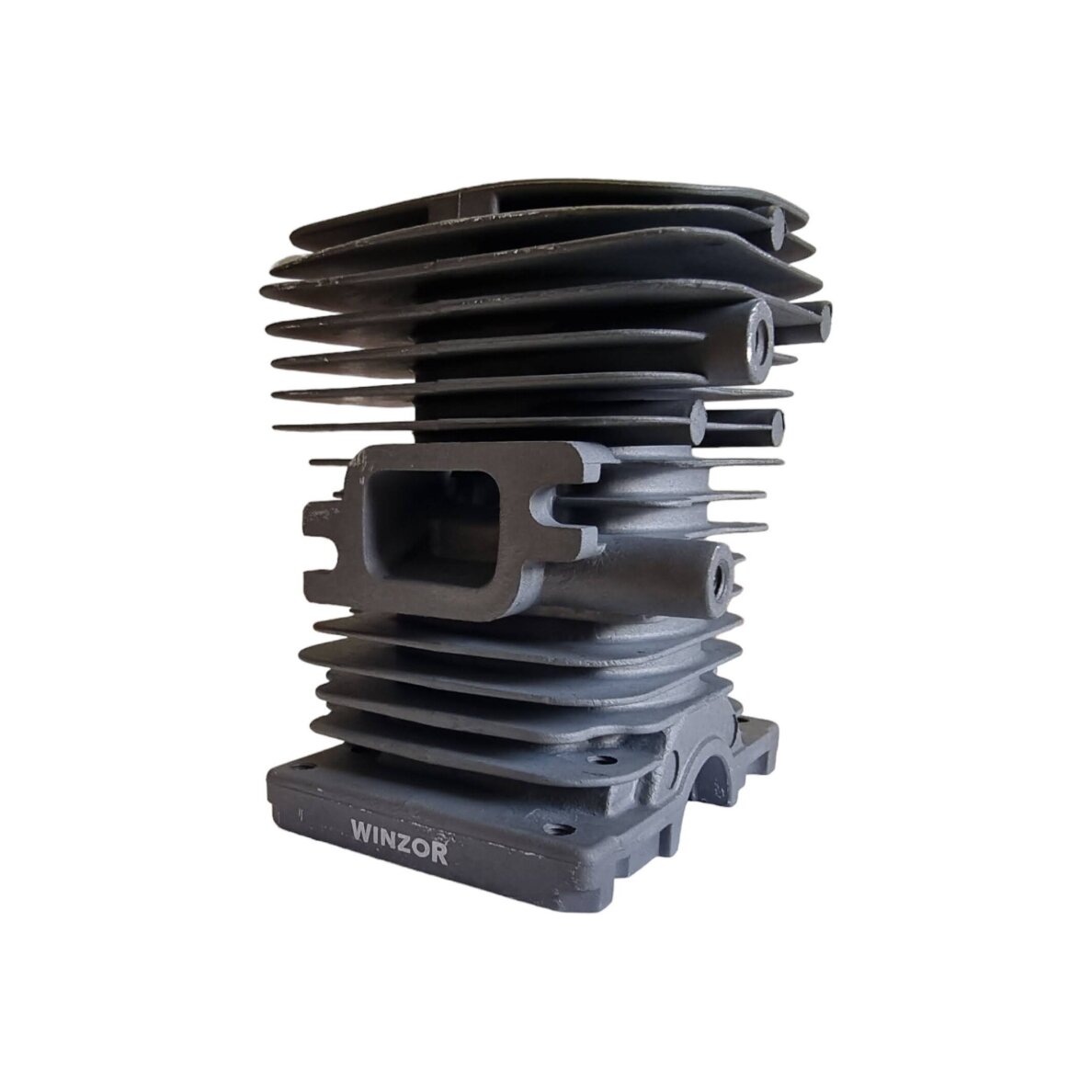

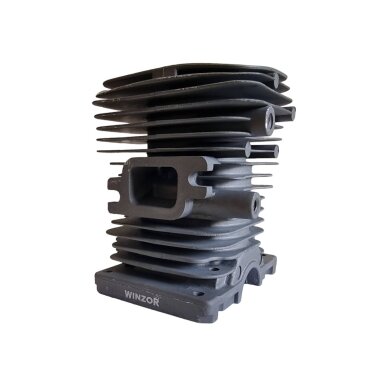

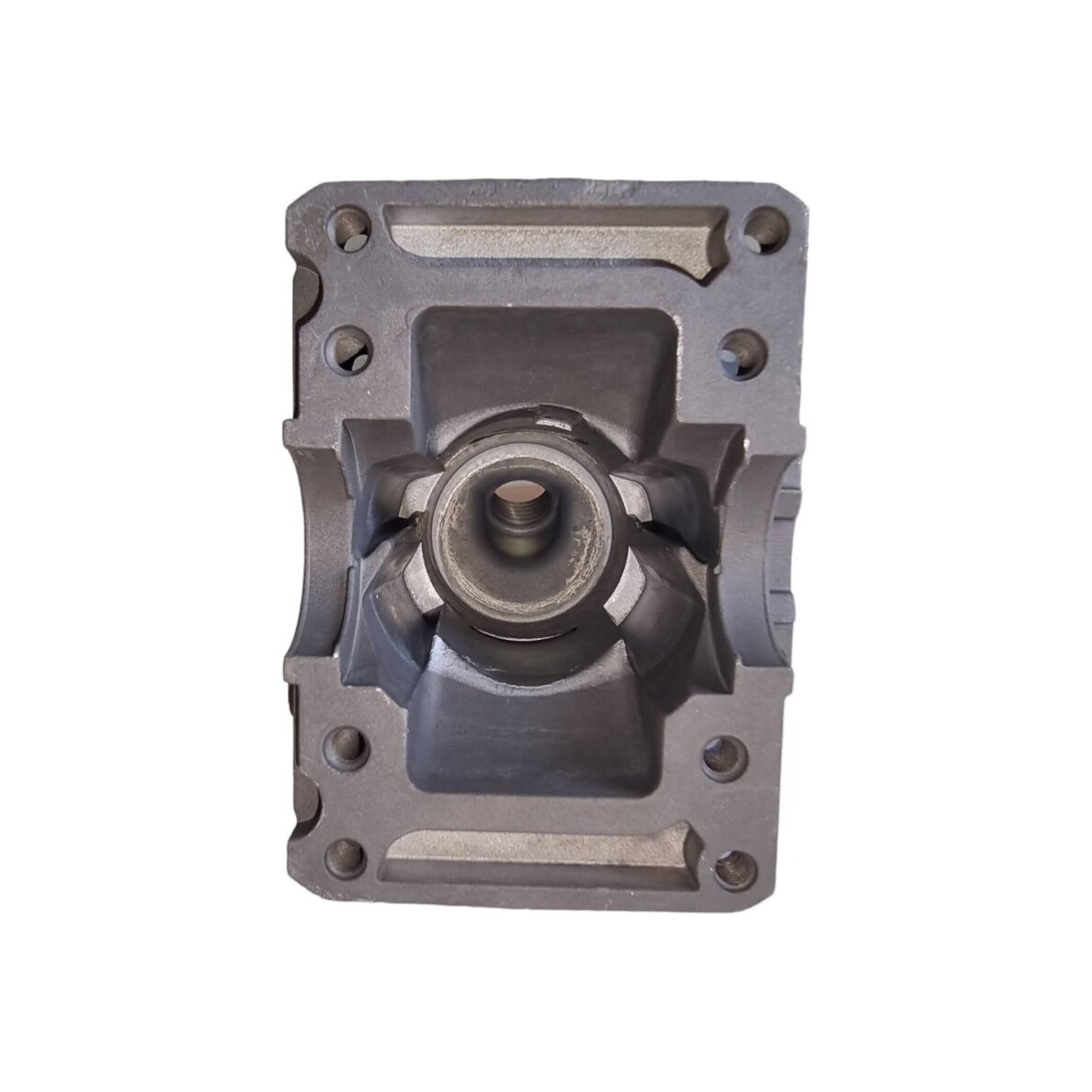

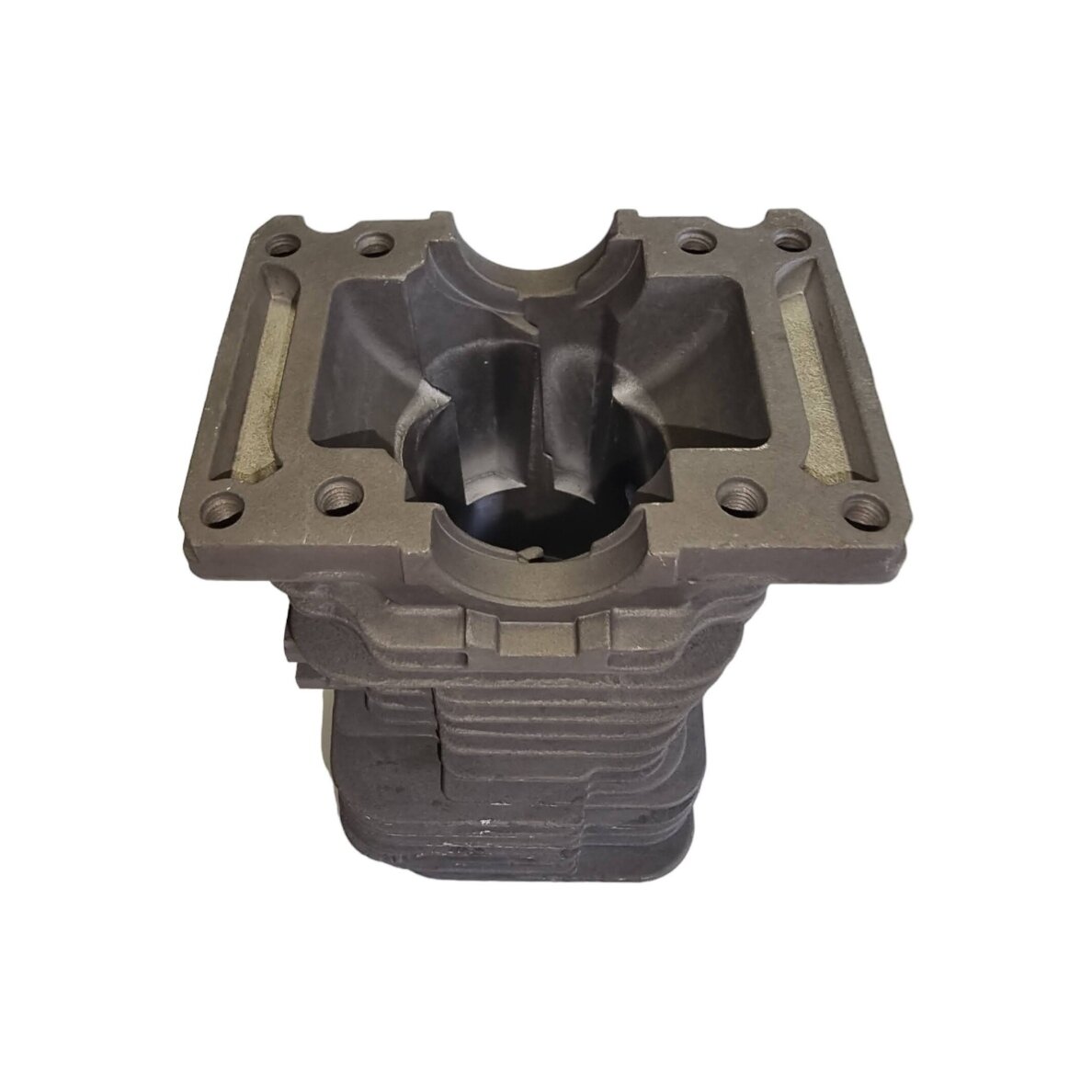

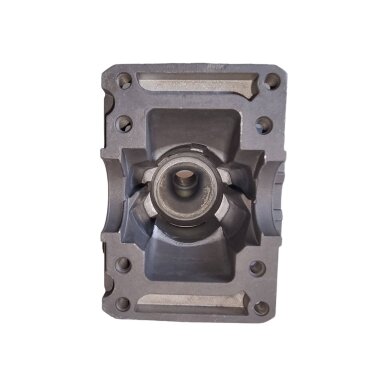

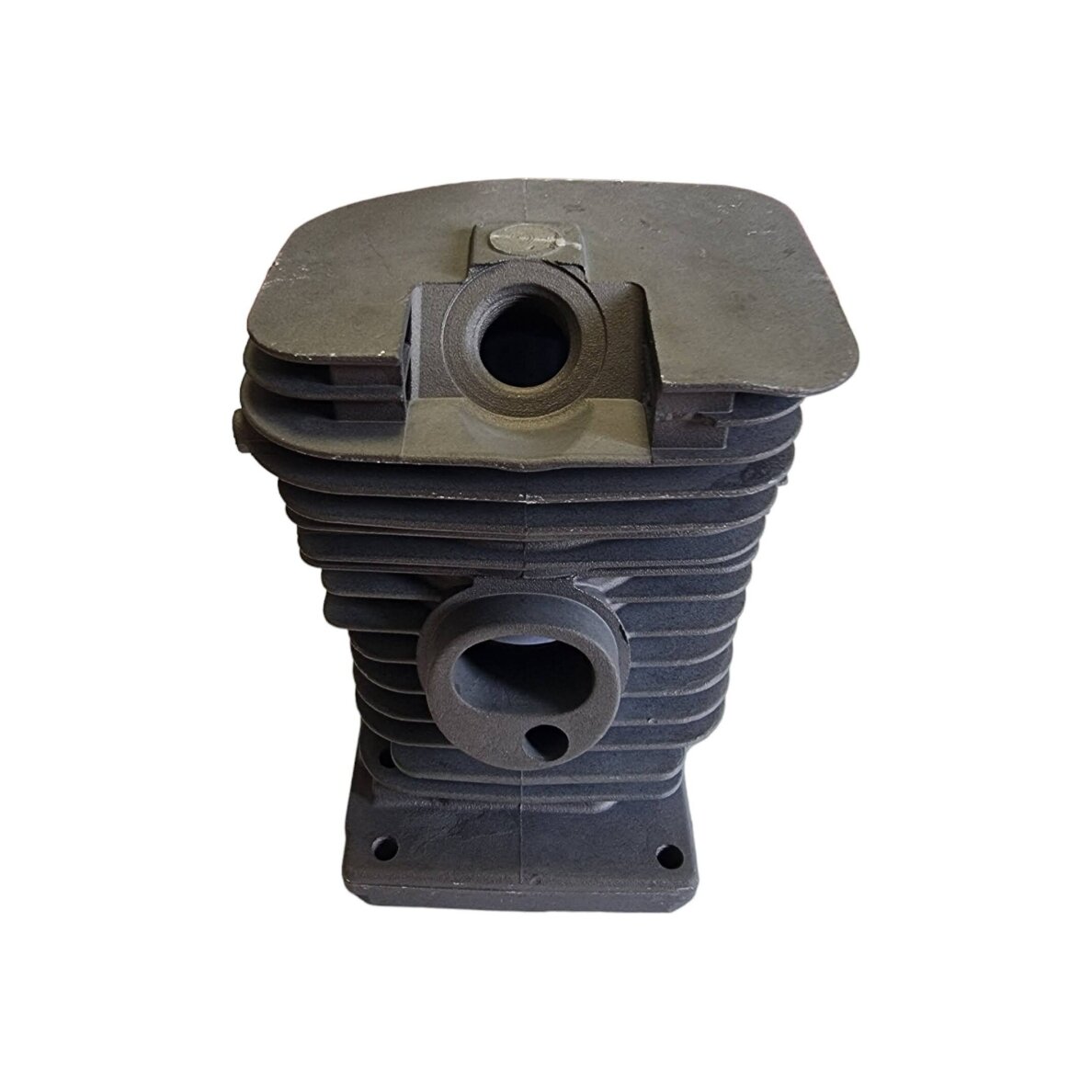

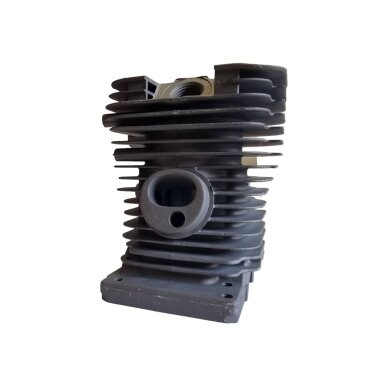

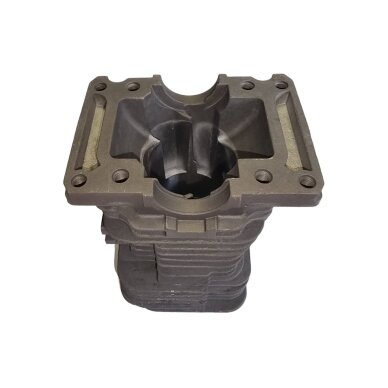

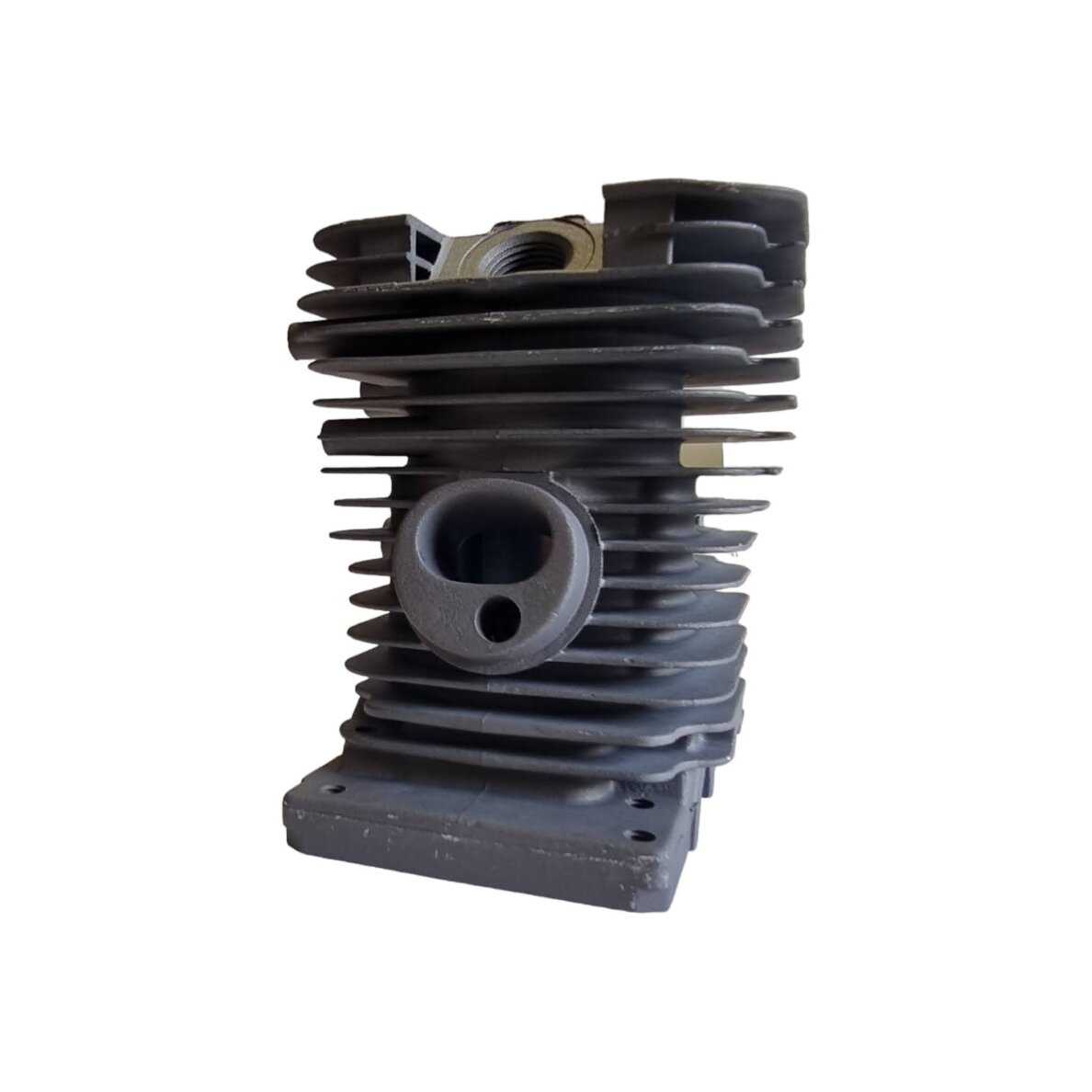

38mm cylinder

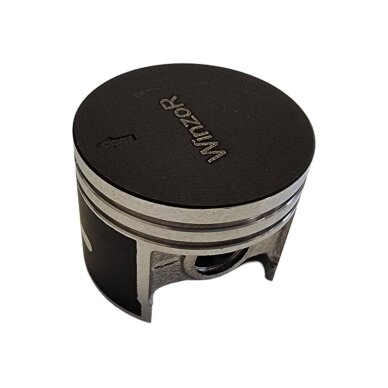

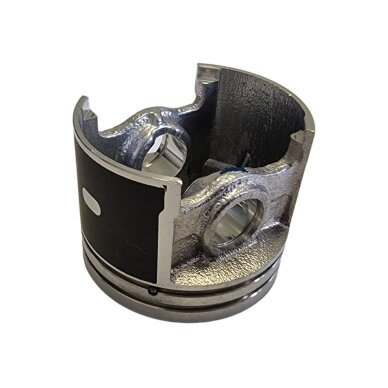

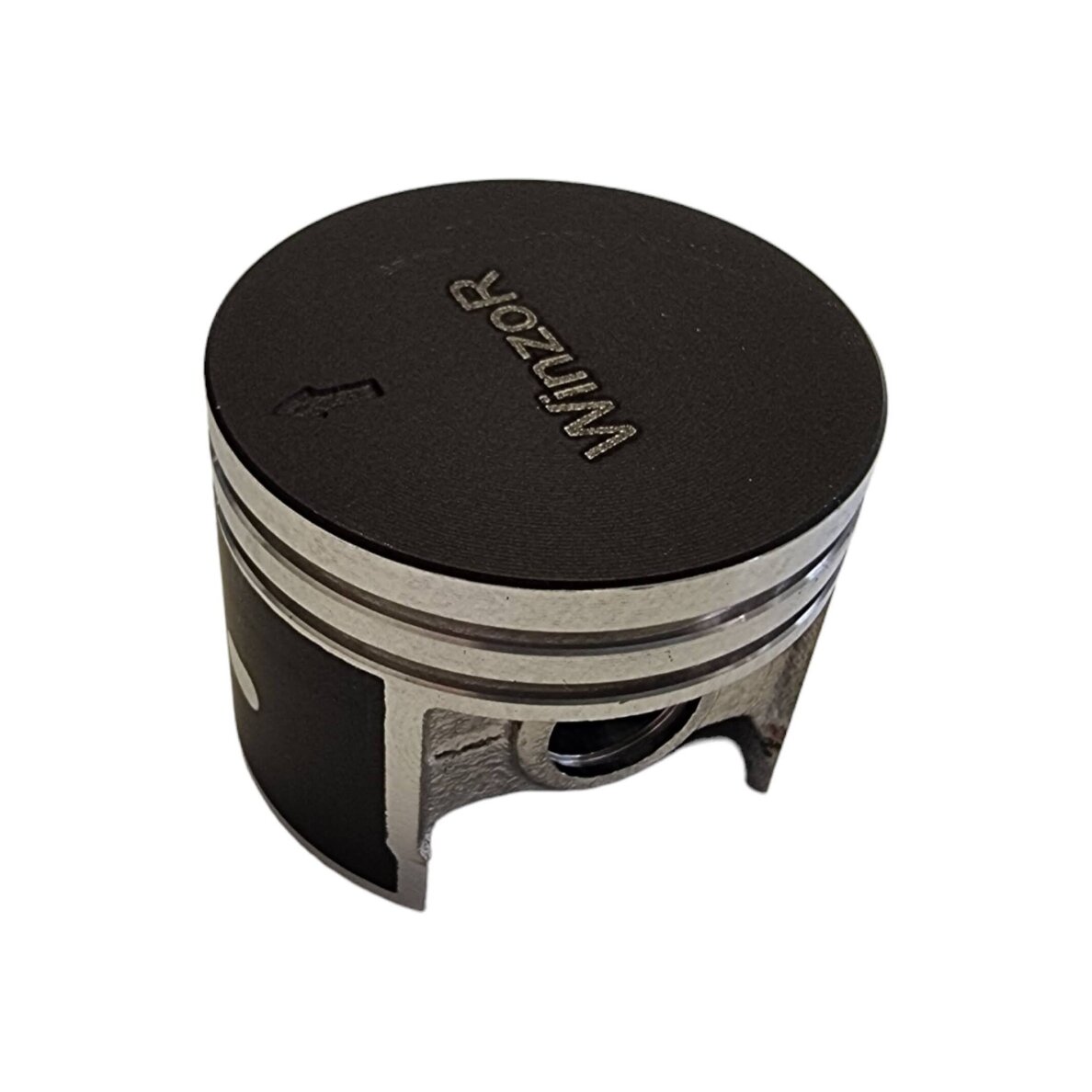

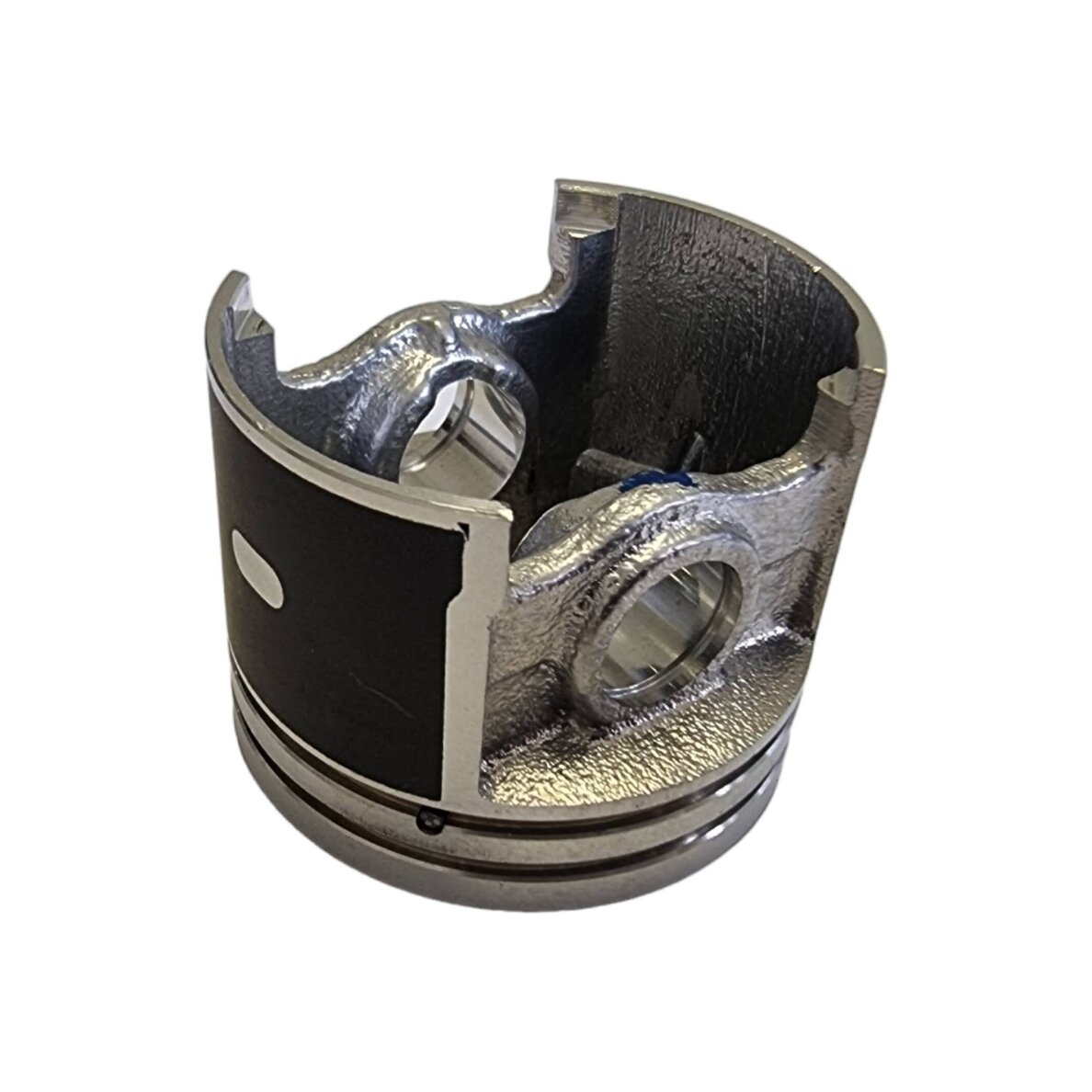

Piston
Piston rings
10mm piston pin
Piston pin retainers

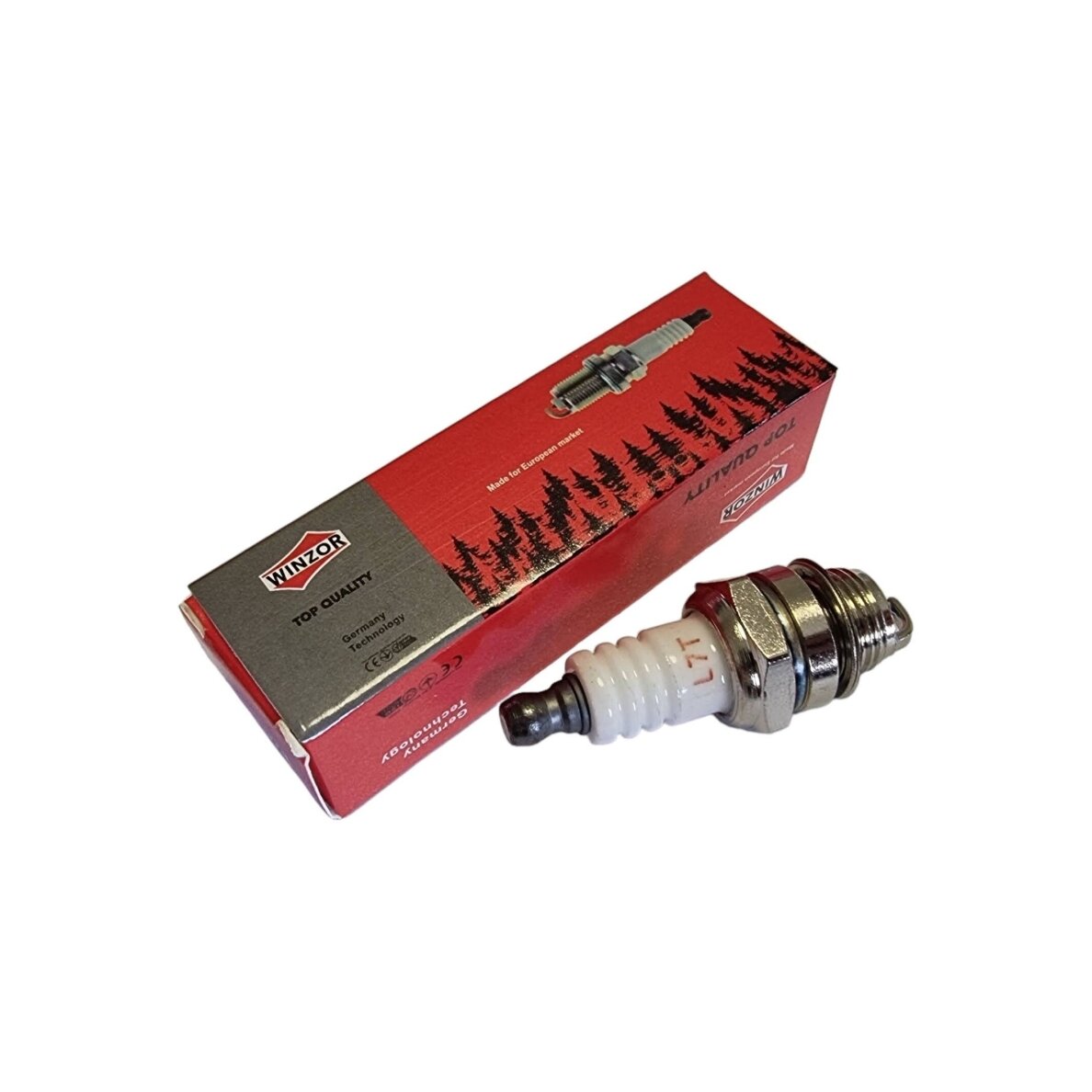

Spark plug
Cylinder mounting screws

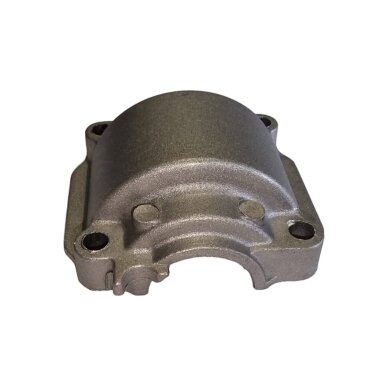

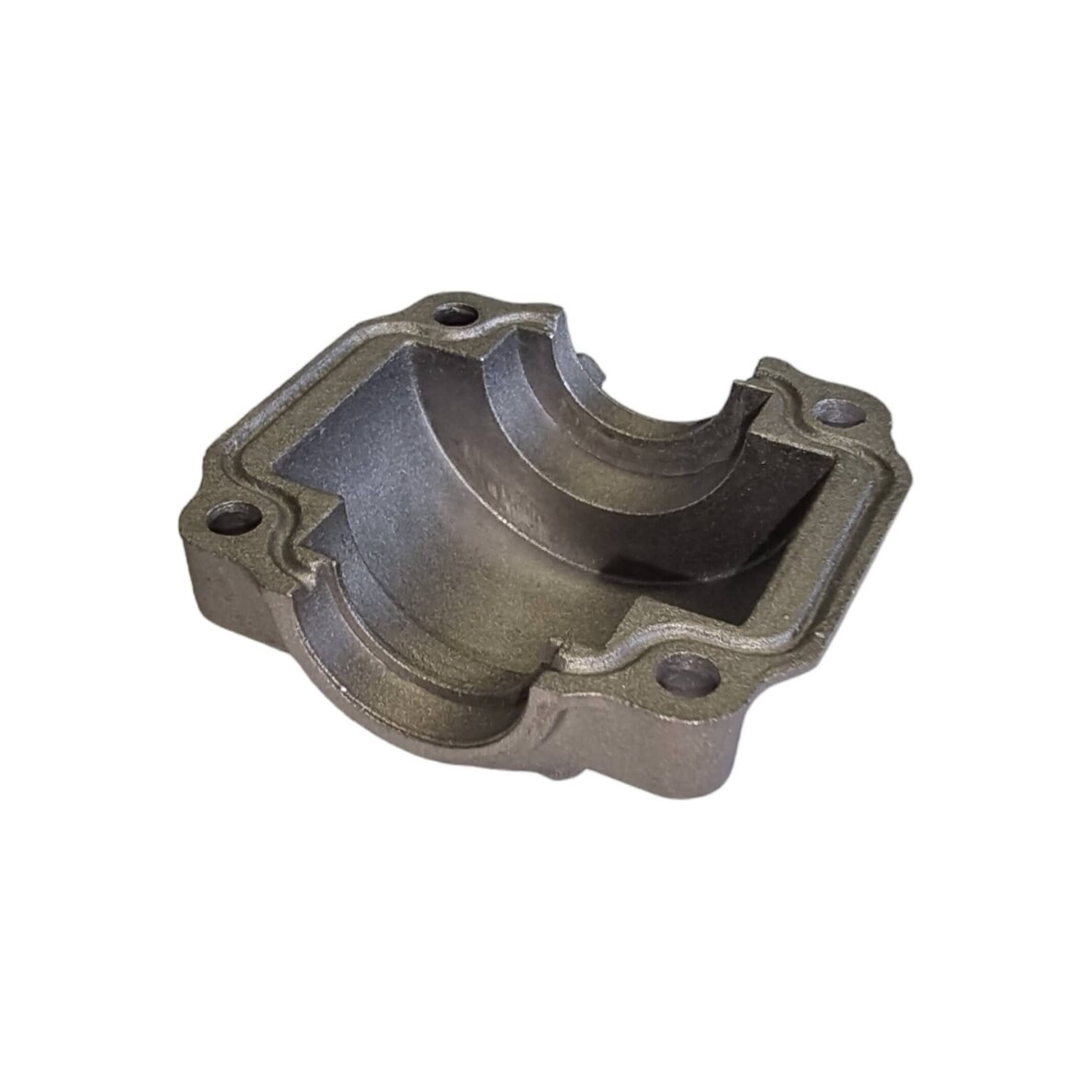

Crankcase cover
Red engine sealant

Before installation check the crankshaft, connecting rod, bearings, carburetor and intake system sealing. Older STIHL 018 versions may use different cylinder parts, so it is necessary to compare the old cylinder, the piston pin diameter and the part number.

When installing the STIHL MS180 cylinder kit, thoroughly clean the crankcase surfaces. Lubricate the piston, rings and cylinder with clean two-stroke engine oil before assembly.

Find more parts in the STIHL MS180 spare parts category and among MS180 gasket and oil seal kits. Use the STIHL parts system for official part verification.
