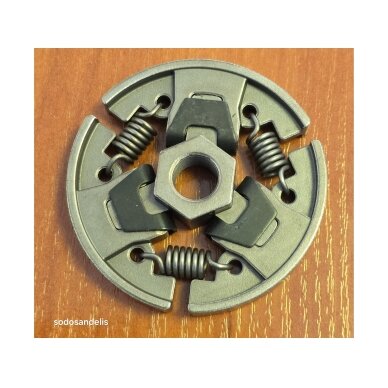

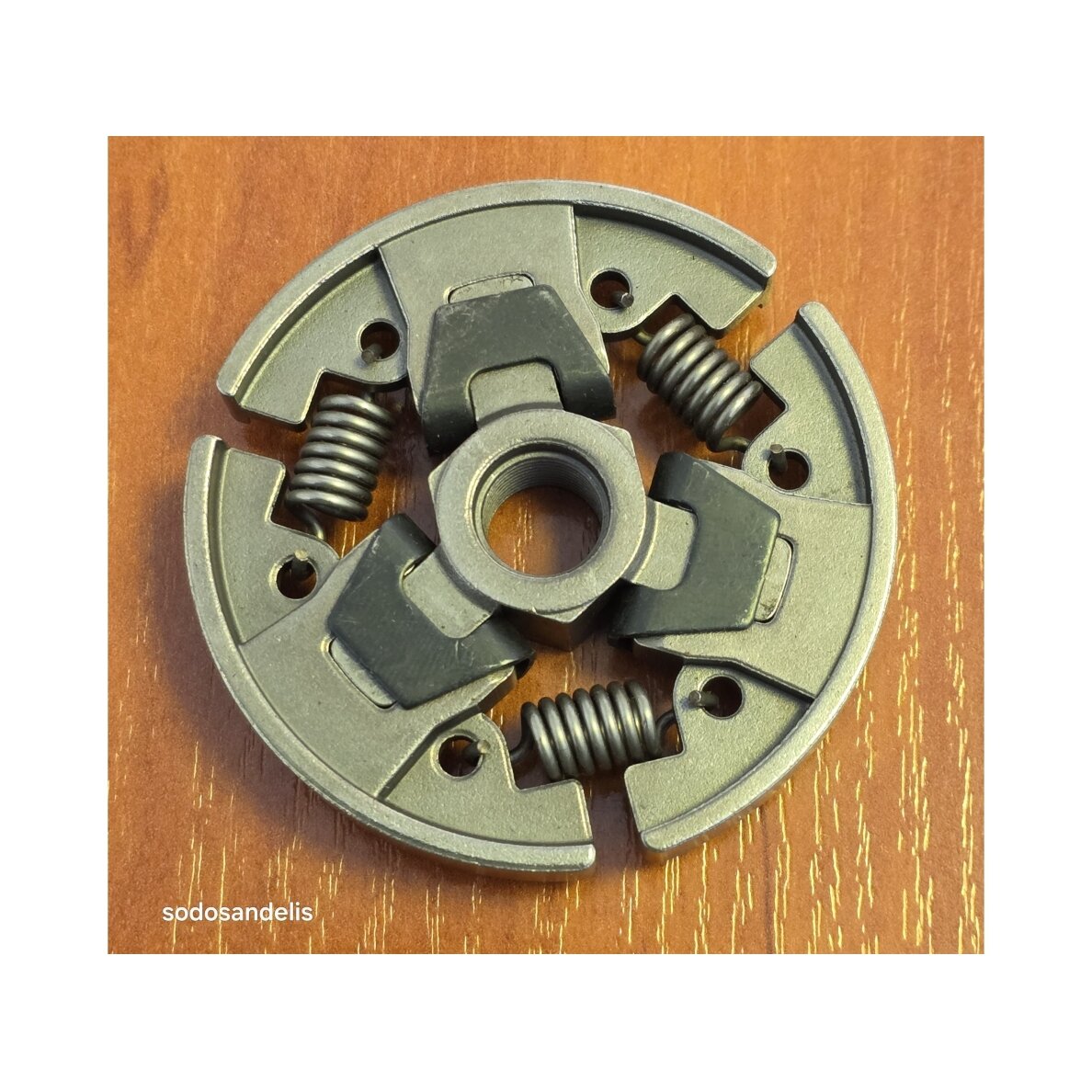

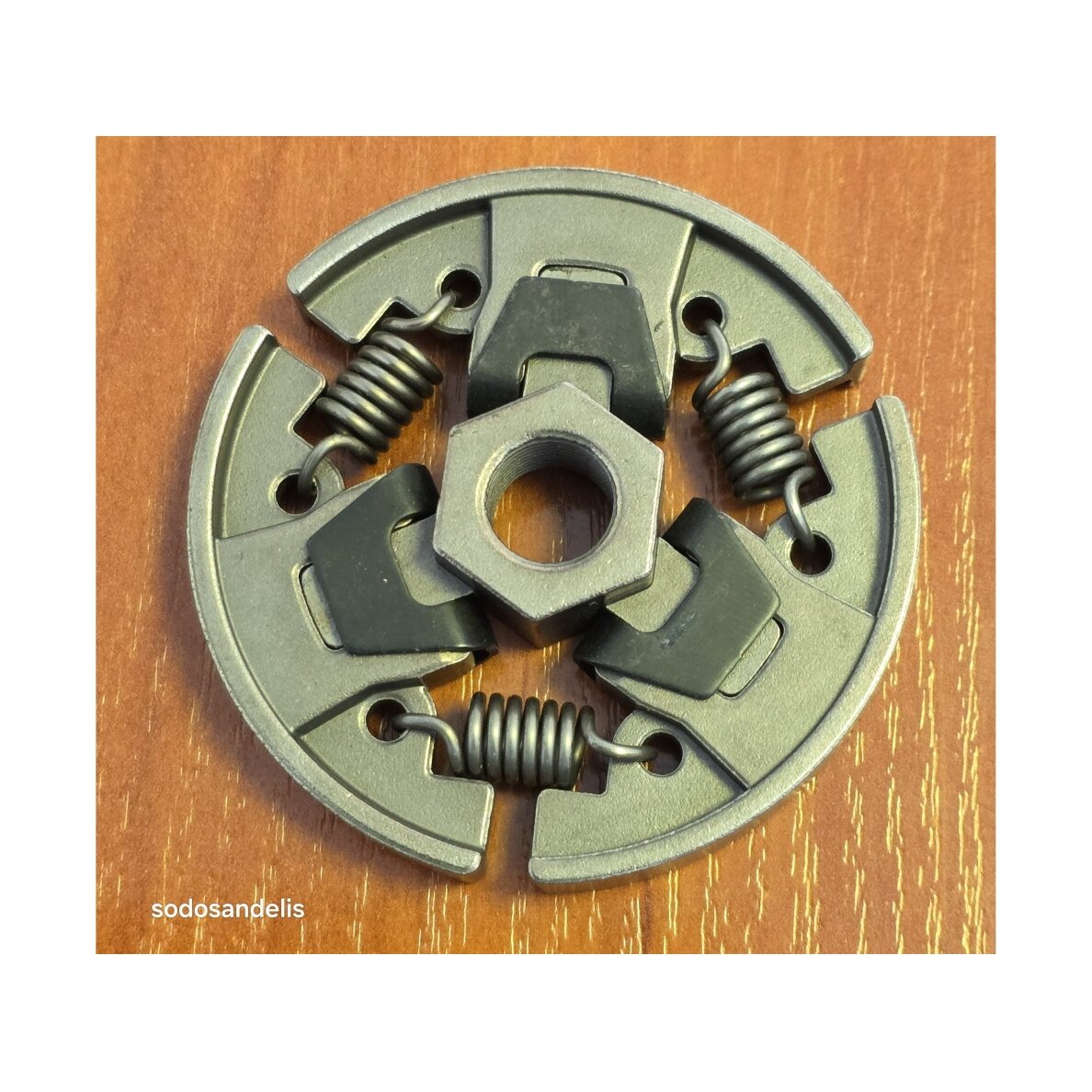

Clutch for STIHL MS230 MS250 MS210 MS251 Chainsaws #11231602050

This STIHL petrol chainsaw clutch is a centrifugal three-shoe clutch assembly designed for selected STIHL homeowner and compact professional chainsaw models. It is used to replace a worn, slipping, or unevenly engaging clutch that transmits power to the chain.

STIHL clutch compatibility

The clutch matches the part number:

1123 160 2050
1123-160-2050

This number is used in selected versions of these chainsaws:

STIHL 017 and 018
STIHL 019 T
STIHL 021, 023 and 025
STIHL MS170 and MS180
STIHL MS190 T and MS191 T
STIHL MS210 and MS230
STIHL MS231 and MS241 C
STIHL MS250 and MS251

However, parts used in different production years may vary. Therefore, before ordering it is important to compare the part number, thread, overall diameter, and the construction of the clutch shoes with the removed part.

Product features
Part type: centrifugal petrol chainsaw clutch
Construction: three clutch shoes with springs
Connection: threaded
Brand: Winzor
Condition: new aftermarket spare part
Package contents: the assembled clutch assembly shown in the pictures

As engine speed increases, centrifugal force expands the clutch shoes. They are then pressed against the drum and transmit the engine power to the chain sprocket. When the engine is idling, the springs return the shoes to their original position, so the chain can stop.

If the clutch slips, overheats or engages the chain unevenly, also check the drum, sprocket and needle bearing. Worn adjacent parts can cause similar malfunctions.

This clutch has a left-hand thread. Therefore remove and tighten it in the correct direction, and secure the locking pin only with the proper tool or as specified by the manufacturer. After installation, check that the chain does not move when the engine is idling.

You can find more suitable parts in the STIHL MS180 spare parts category and the STIHL MS250 spare parts category. Usage documents are provided by the official STIHL instruction system.
