Brushcutter / trimmer gearbox guard Oleo-Mac SP25

This non-original Oleo-Mac SPARTA 25 cutting attachment guard kit is mounted on the lower part of the drive tube, at the cutting head or disk. The guard captures grass, pebbles and other debris thrown by the rotating cutting tool.

The part corresponds to Oleo-Mac number 61030197. This is an external cutting head or disk guard, not an internal gearbox housing.

Compatibility Confirmed

Fits the following Oleo-Mac brushcutters:

Oleo-Mac SPARTA 25
Oleo-Mac SPARTA 25 D
Oleo-Mac SPARTA 25 S
Oleo-Mac SPARTA 25 T
Oleo-Mac SPARTA 26
Oleo-Mac SPARTA 250 T

In Oleo-Mac parts diagrams, number 61030197 denotes the disk guard for SPARTA 25 D and SPARTA 25 S. The same number is catalogued for SPARTA 25, 25 T, 26 and 250 T models. These models use a 26 mm drive tube guard mounting.

Part Number

Replaces or corresponds to:

Oleo-Mac 61030197

This is not the separately catalogued 61330252 trimmer head guard. In Oleo-Mac diagrams 61030197 and 61330252 are shown as different parts.

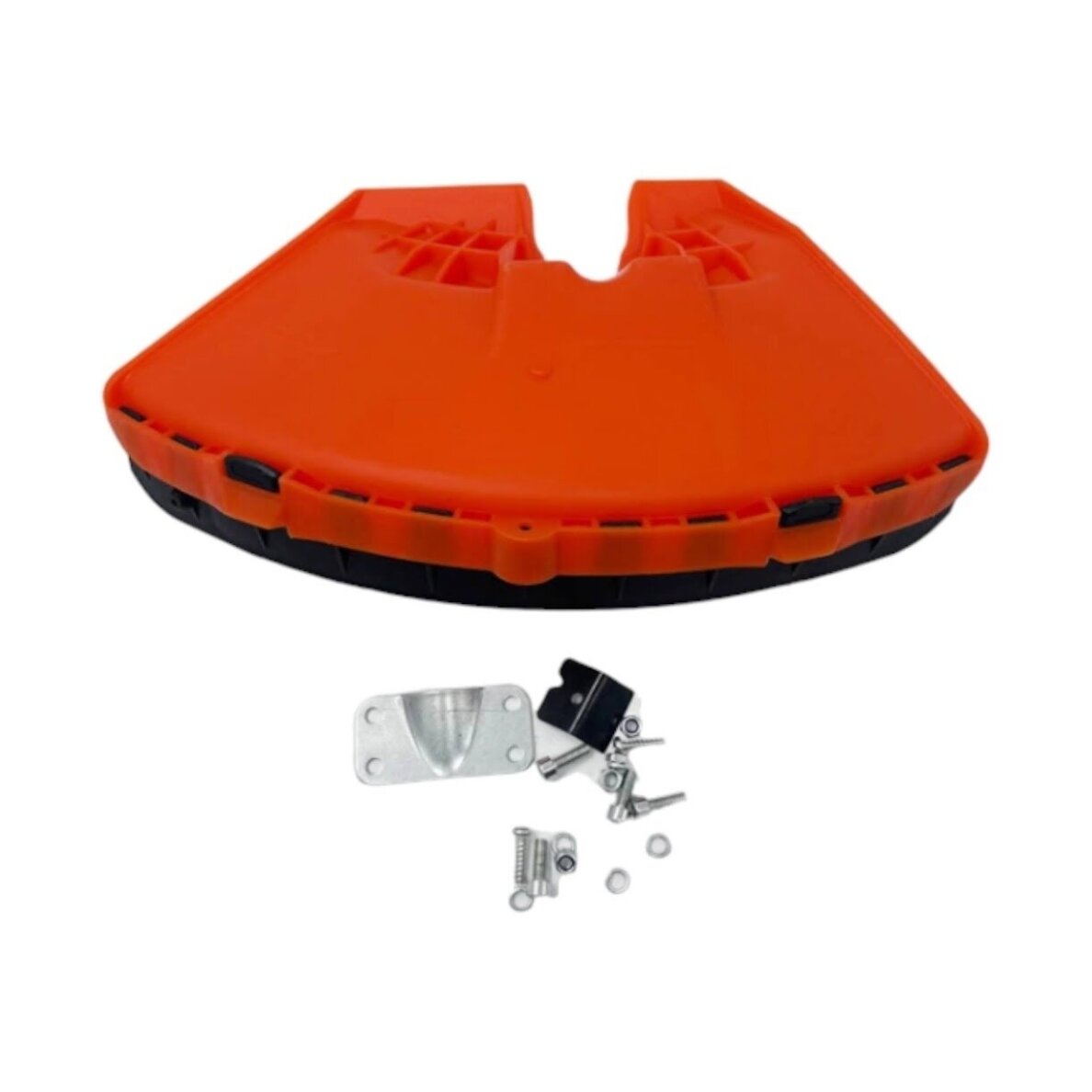

Included in the kit

The kit includes:

Orange cutting guard
Line length limiting blade
Metal mounting plate
Mounting screws
Washers and nuts
What to Check Before Ordering?

Check that the machine uses:

26 mm external drive tube system
a guard numbered 61030197
the same two-screw mounting
the same guard and line cutter shape

This part is not intended to replace a damaged gearbox housing. It is an external guard fitted beside the gearbox.

You can find more compatible parts in the Oleo-Mac brushcutter parts category.
