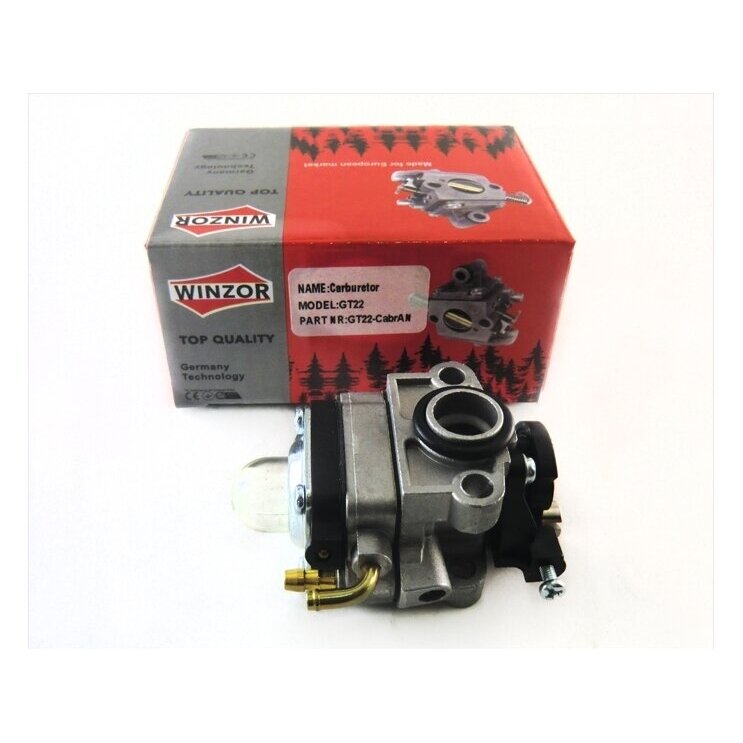

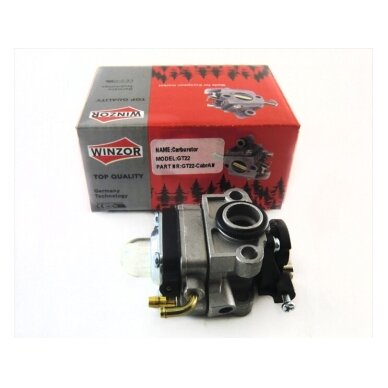

Brushcutter / trimmer carburetor ECHO GT-22 (AN)

This Echo GT-22 carburetor – a non-original part, intended for compatible Echo GT-22 and GT-22GES petrol trimmers. It can replace a worn, contaminated or damaged carburetor that causes the engine to be difficult to start, idle unstably or respond poorly to the throttle.

In the Echo GT-22GES parts catalog the diaphragm carburetor is listed under number A021-000550, and its type – WYL-170. Therefore before ordering it is worth verifying both of these markings.

Compatible Echo Models

The carburetor is primarily intended for compatible:

Echo GT-22
Echo GT-22GES

versions.

Part numbers and markings:

A021-000550
A021000550
WYL-170

The same A021-000550 number is also catalogued for some Echo SRM-22GESU versions. However, different serial numbers and production periods may have different configurations.

Purpose of the Echo GT-22 Carburetor

The diaphragm carburetor controls the fuel-and-air mixture entering the engine. When the carburetor is worn, the following symptoms may occur:

Difficulty starting the engine
Engine runs only with the choke engaged
Unstable idle
Poor throttle response
Engine loses power under load
Fuel leaks or the engine floods

However, before replacing the carburetor it is worth checking the fuel filter, hoses, air filter and intake gaskets.

Before installation compare the fuel connections, throttle mechanism, mounting points and overall construction of the old and new carburetor. Do not assume gaskets or other external parts are included in the kit if they are not visible in the product photos.

After fitting, check that the throttle moves freely and returns to the idle position. Also ensure that there are no fuel leaks.

After replacement it may be necessary to adjust the idle or the fuel mixture. Perform adjustments with a clean air filter and fresh two-stroke engine fuel mixture.
